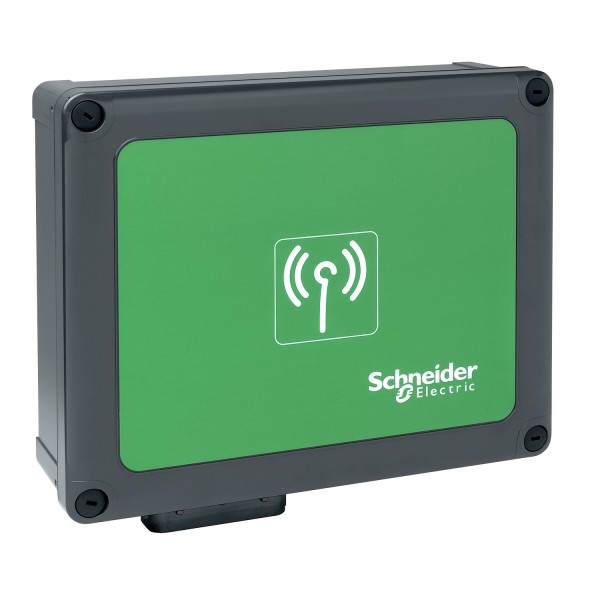

18 relay outputs – Industrial plug connection

Details

Main
range of product	Harmony XAR
product or component type	Base station
device short name	ZARB
product specific application	Hoisting applications Material handling

Complementary
connector type	Industrial socket
cable entry	Cable gland
material	PC (polycarbonate)
[Us] rated supply voltage	24...48 V AC/DC
vibration resistance	0.075 mm 10…55 Hz)
shock resistance	15 gn 11 ms
provided equipment	Internal antenna
nominal output current	0,54 A 48 V AC IEC 60947-5-1
number of relays	18
relay type	Motion relay outputs 9 NO Auxiliary relay outputs 7 NO Auxiliary relay outputs 2 NC + 2 NO
safety outputs	2 NC relay outputs
switching capacity in VA	5 VA DC 26 VA AC
maximum switching current	6,8 mA
maximum switching voltage	48 V AC/DC +/- 20 %)
communication network type	Wireless bluetooth low energy
transmission frequency	2,4 GHz
maximum sensing distance	100 m in free field
number of channels	40
fixing mode	4 holes
electrical durability	100000 cycles
mechanical durability	1000000 cycles
number of alarms	6 programmable alarms
number of inputs	12
service life	10 year(s)
width	280 mm
height	305 mm
depth	100 mm
net weight	1,45 kg

Environment
IP degree of protection	IP65
NEMA degree of protection	NEMA 4
pollution degree	3
electromagnetic compatibility	Resistance to electrostatic discharge 4 kV on contact)class B IEC 61000-4-2 Resistance to electrostatic discharge 8 kV in air)class B IEC 61000-4-2 Resistance to radiated electromagnetic fields 10 V/mclass B IEC 61000-4-3
standards	IEC 61000-6-2
radio agreement	SRRC ICASA ANATEL RSS ARIB FCC
relative humidity	0…97 %
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
product certifications	CSA EAC UL KC CE C-Tick
environmental characteristic	RoHS compliant

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
