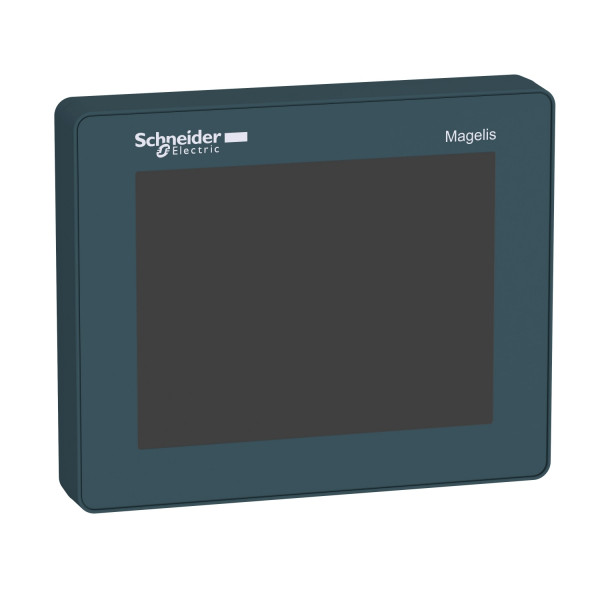

3in5 small touchscreen display front module Backlight LED Color TFT LCD

Tootekood: HMIS65

Quick Overview

Saadavus: Tellimisel

258,07 € (ilma KM-ta)

Qty:

Main
range of product	Harmony SCU
product or component type	Small touchscreen display HMI
display size	3.5 inch
pixel resolution	320 x 240 pixels QVGA

Complementary
display type	with backlit LED colour TFT LCD
touch panel	Analogue
backlight lifespan	50000 hours with 65536 colours
brightness	16 levels via touch panel
view angle horiz x vert	60° left 60° right 40° top 60° bottom
character font	Korean Chinese (simplified Chinese) Japanese (ANK, Kanji) ASCII Taiwanese (traditional Chinese)
width	97.6 mm
depth	80 mm
net weight	0.53 kg

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
