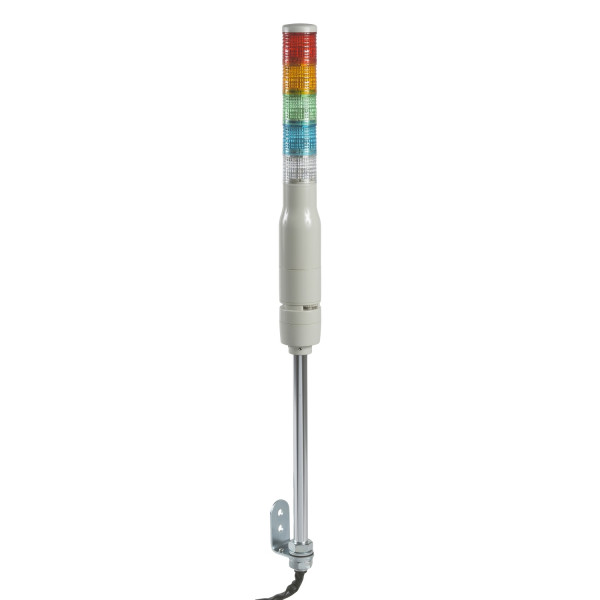

40mmTower ROGBC PoleBuzzrFlash100-240VAC

Ülevaaded: 0

Tootekood: XVC4M55S

Quick Overview

Saadavus: Ei saa enam tellida

457,11 € (ilma KM-ta)

Details

Main
range of product
Harmony XVC4
product or component type
Complete pre-wired monolithic tower light
beacon or indicator bank unit type
5 illuminated units
sound signalling
Buzzer
mounting diameter
40 mm
component name
XVC
device short name
XVC
light source
LED steady or flashing red
LED steady or flashing orange
LED steady or flashing green
LED steady or flashing blue
LED steady or flashing clear
supply circuit type
AC
noise level
70…85 dB (continuous or intermittent tone) at 1 m
Complementary
material
Polycarbonate: illuminated unit
ABS (acrylonitrile butadiene-styrene): base unit
PBT + ABS (UL94-V0): top cover
SGP (chromium-plated): support tube
mounting location
On support tube, 17 mm
product mounting
On support tube, 17 mm
[Us] rated supply voltage
100...240 V
[Us] rated supply voltage
100...240 V
cable cross section
0.33 mm²
0.83 mm²
AWG gauge
AWG 18
AWG 22
cable length
450 mm
marking
CE
[Uimp] rated impulse withstand voltage
4 kV
current consumption
110 mA
fundamental frequency
2.23 kHz
flashing frequency
1 Hz
net weight
0.86 kg
height
707.2 mm
Environment
standards
EN/IEC 60947-1
EN/IEC 60947-5-1
product certifications
UL
protective treatment
TC
ambient air temperature for storage
-35…70 °C
ambient air temperature for operation
-10…50 °C
electrical shock protection class
Class I conforming to EN/IEC 61140
overvoltage category
Class I conforming to EN/IEC 61140
IP degree of protection
IP23 vertical surface installation conforming to EN/IEC 60529
IP54 flat surface installation conforming to EN/IEC 60529
Offer Sustainability
Sustainable offer status
Green Premium product
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
