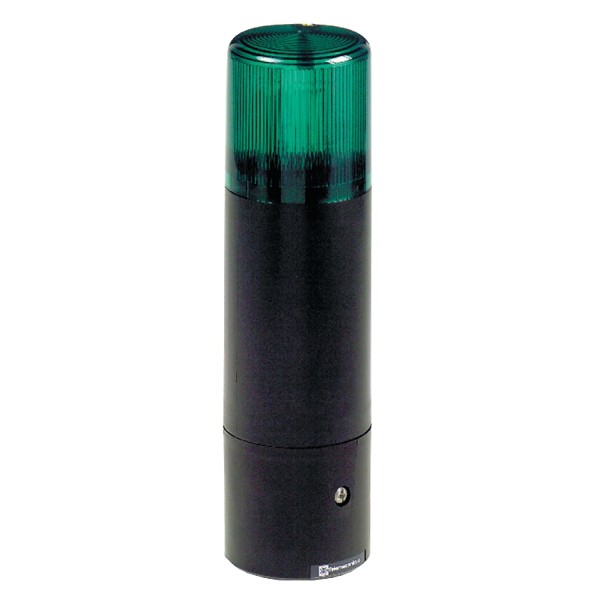

5 J green beacon XVD - flash tube - 24 V AC DC - IP 40

Ülevaaded: 0

Tootekood: XVDL6B3

Quick Overview

Saadavus: Ei saa enam tellida

288,18 € (ilma KM-ta)

Details

Main
range of product
Harmony XVD Application
product or component type
Beacon
beacon or indicator bank unit type
Base unit
Illuminated unit
signalling type
Flashing
mounting diameter
70 mm
component name
XVD
material
Glass reinforced polyamide: base unit
Polycarbonate: illuminated unit
light source
Integral flash discharge tube, green
bulb type
Flash discharge tube
[Us] rated supply voltage
24 V AC/DC
Complementary
assembly style
Customer assembly
connections - terminals
Screw clamp terminals, <= 1 x 1.5 mm² with cable end
[Ui] rated insulation voltage
250 V conforming to IEC 60947-1
nominal voltage limit
0.85...1.1 Un conforming to IEC 60947-5-1
current consumption
< 350 mA DC
< 550 mA AC
[Uimp] rated impulse withstand voltage
IEC 60947-1 4 kV
flash energy
5 J
flashing frequency
1 Hz
CAD overall width
70 mm
CAD overall height
245 mm
CAD overall depth
70 mm
terminals description ISO n°1
(GND)GROUND
(COM-1)PW
net weight
0.48 kg
Environment
product certifications
GOST
CSA
UL
standards
EN/IEC 60947-5-1
protective treatment
TC
ambient air temperature for storage
-40…70 °C
electrical shock protection class
Class I on support tube, with metal fixing plate conforming to IEC 60536
Class II on base unit conforming to IEC 60536
Class II on support tube, with plastic fixing plate conforming to IEC 60536
IP degree of protection
IP40 conforming to IEC 60529
Contractual warranty
Warranty
18 months
