  • 50MM BLUE STEADY LENS UNIT/BLACK RING

Product was successfully added to your shopping cart.

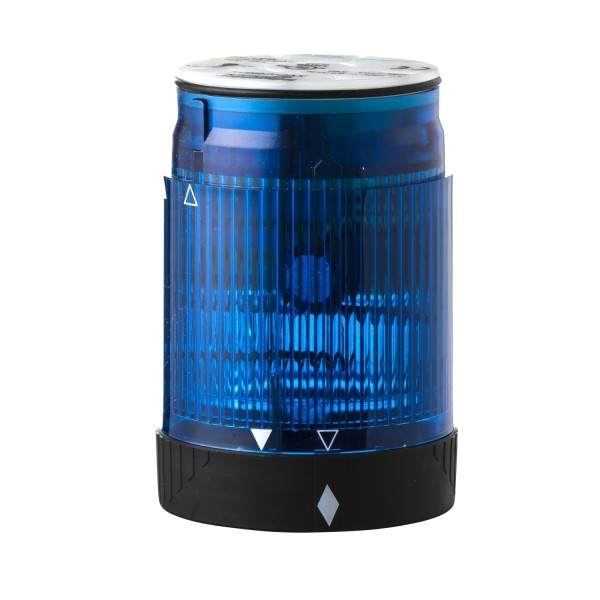

50MM BLUE STEADY LENS UNIT/BLACK RING

Ülevaaded: 0

Tootekood: XVPC36

Quick Overview

Saadavus: Ei saa enam tellida

20,41 € (ilma KM-ta)

Details

Main
range of product
Harmony XVP Universal
product or component type
Indicator bank
beacon or indicator bank unit type
Illuminated unit with black clamping ring
signalling type
Steady
mounting diameter
50 mm
component name
XVPC
material
Polycarbonate and polyamide
light source
Bulb not included, blue
bulb type
Incandescent BA 15d
Protected LED
[Us] rated supply voltage
<= 250 V
Complementary
assembly style
Customer assembly, up to 5 units
maximum power dissipation in W
7 W
connections - terminals
Screw clamp terminals, <= 1 x 1.5 mm² with cable end
marking
CE
[Ui] rated insulation voltage
250 V IEC 60947-1
nominal voltage limit
0.85...1.1 Un IEC 60947-5-1
[Uimp] rated impulse withstand voltage
4 kV IEC 60947-1
CAD overall width
56 mm
CAD overall height
65 mm
CAD overall depth
56 mm
net weight
0,1 kg
Environment
pollution degree
2
product certifications
CULus
standards
EN/IEC 60947-5-1
protective treatment
TC
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-25…50 °C incandescent
-25…50 °C LED
electrical shock protection class
Class I on support tube IEC 61140
Class II on base unit IEC 61140
IP degree of protection
IP65 IEC 60529
Contractual warranty
Garantii
18 months
