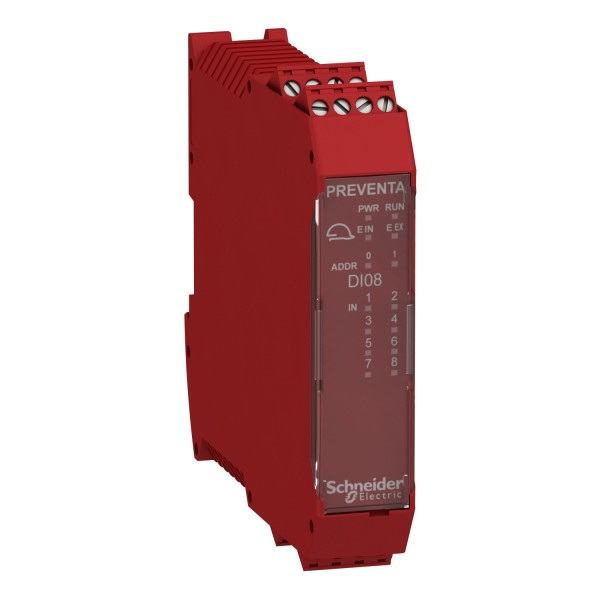

8 inputs expansion modules with screw term

Ülevaaded: 0

Tootekood: XPSMCMDI0800

Quick Overview

Saadavus: Tellimisel

450,60 € (ilma KM-ta)

Details

Main
range of product
Preventa Safety automation
product or component type
Safe input expansion module
device short name
XPSMCM
electrical connection
Screw terminal
[Us] rated supply voltage
24 V - 20...20 % DC
number of inputs
8 digital
number of outputs
4 test line control
discrete input type
PNP
discrete output type
PNP
function of module
Monitoring safety detection discrete input
Monitoring safety dialogue discrete input
Complementary
maximum power consumption in W
3 W
power dissipation in W
3 W
integrated connection type
Backplane expansion bus
number of terminal blocks
4
connections - terminals
2 captive screw clamp terminals, removable terminal block
1 captive screw clamp terminals, removable terminal block
safety level
Can reach category 4 EN/ISO 13849-1
Can reach PL = e EN/ISO 13849-1
Can reach SIL 3 EN/IEC 61508
SILCL 3 IEC 62061
quality labels
CE
discrete input voltage
24 V DC
local signalling
1 LED green PWR power ON
1 LED green RUN RUN (status)
1 LED red E IN internal error
1 LED red E EX external error
2 LEDs orange ADDR node address
8 LEDs yellow IN input status
cable cross section
0,2…1,5 mm² - AWG 24...AWG 16 flexible without cable end
0,2…2,5 mm² - AWG 24...AWG 14 flexible without cable end
0,25…1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel
0,25…2,5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel
0,25…2,5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel
0,5…1,5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel
0,2…1 mm² - AWG 24...AWG 18 solid without cable end
0,2…2,5 mm² - AWG 24...AWG 14 solid without cable end
mounting support
Omega 35 mm DIN rail EN 50022
depth
22,5 mm
height
99 mm
width
114,5 mm
net weight
0,23 kg
Environment
standards
IEC 62061
EN/IEC 61508
EN/ISO 13849-1
EN/IEC 61800-5-1
product certifications
RCM
CULus
TÜV
IP degree of protection
IP20 enclosure)
ambient air temperature for operation
-10…55 °C
ambient air temperature for storage
-20…85 °C
relative humidity
10…95 %
pollution degree
2
[Uimp] rated impulse withstand voltage
4 kV EN/IEC 61800-5-1
safety reliability data
PFHd = 5.75E-9 1/h
DC > 99 %
MTTFd < 100 years high
insulation
250 V AC between power supply and housing EN/IEC 61800-5-1
overvoltage category
II
electromagnetic compatibility
Electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2
Electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2
Susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3
Susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3
vibration resistance
+/-0.35 mm 10…55 Hz)EN/IEC 61496-1
shock resistance
10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
service life
20 year(s)
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
