Details
Characteristics
| range of product | Harmony XVR | |
|---|---|---|

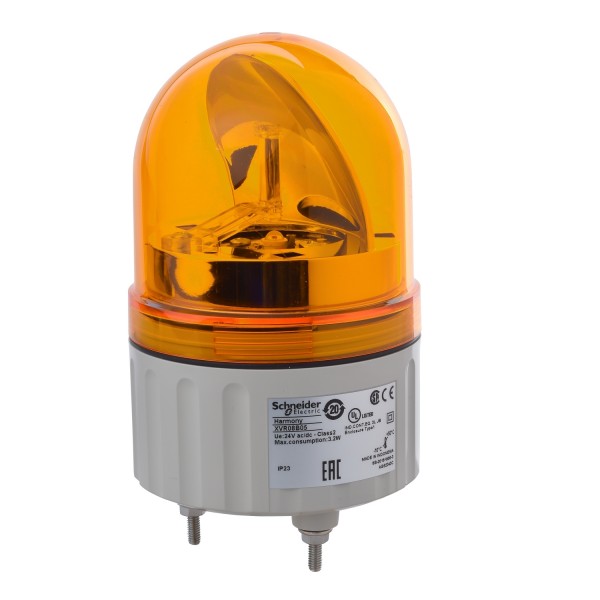

| product or component type | Prewired rotating mirror beacon | |
| sound signalling | Without | |
| device short name | XVR | |
| mounting diameter | 84 mm | |
| IP degree of protection | IP65 (with accessory) conforming to IEC 60529IP23 conforming to IEC 60529 | |
| [Us] rated supply voltage | 12 V AC/DC | |
| light source | High luminosity LED, orange |
| material | ABS (acrylonitrile butadiene-styrene): body partPC: globe | |
|---|---|---|
| CAD overall width | 84 mm | |
| CAD overall depth | 84 mm | |
| net weight | 0.3 kg | |
| marking | CE | |
| product mounting | By 3 M4 screws | |
| supply voltage limits | 10…15 V DC10.8…13.2 V AC | |
| [Uimp] rated impulse withstand voltage | 0.8 kV | |
| current consumption | 250 mA | |
| flashing frequency | 2.3 Hz | |
| clamping connection capacity | 0.83 mm² | |
| AWG gauge | AWG 18 | |
| cable length | 500 mm |
| standards | EN 61000-6-4EN 61000-6-2 | |
|---|---|---|
| product certifications | UL | |
| protective treatment | TC | |
| ambient air temperature for storage | -35…70 °C | |
| ambient air temperature for operation | -10…50 °C | |
| electrical shock protection class | Class II conforming to IEC 61140 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
