Details
Characteristics

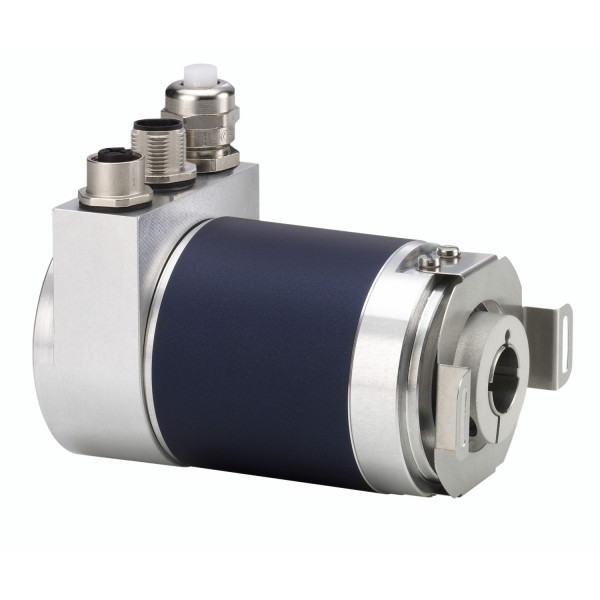

| range of product | OsiSense XCC | |
|---|---|---|
| encoder type | Multiturn absolute encoder fieldbus | |
| device short name | XCC | |
| product specific application | - | |
| diameter | 58 mm | |
| bus type | CANopen S10 (Transparent Ready) DS 406 V3.1, class C2 conforming to DR303-1V1.3, DR303-3 V1.2., ISO 11898, DS301 V4.02/CAN2.A | |
| shaft diameter | 15 mm | |
| shaft type | Hollow | |
| resolution | 4096 turns/8192 points | |
| electrical connection | 1 male + 1 female connectors + 1 cable gland M12 radial 5 pins Pg 9 radial for network input/ouputs and external supply | |
| type of output stage | CANopen 25-bit | |
| [Us] rated supply voltage | 24 V DC | |
| transmission rate | 1000 kbit/s800 kbit/s20 kbit/s250 kbit/s10 kbit/s125 kbit/s50 kbit/s500 kbit/s | |
| enclosure material | Aluminium |
| shaft tolerance | F7 | |
|---|---|---|
| supply voltage limits | 10…30 V DC | |
| maximum revolution speed | 6000 rpm | |
| shaft moment of inertia | 30 g.cm² | |
| torque value | 0.003 N.m | |
| maximum load | 11 daN radial | |
| output frequency | 800 kHz | |
| current consumption | 0...100 mA no-load | |
| protection type | Reverse polarity protectionVoltage peaks protection | |
| status LED | CAN_RUN: 1 LED (green)CAN_ERR: 1 LED (red) | |
| surge withstand | 0.5 kV, level 1 conforming to IEC 61000-4-5 | |
| base material | Aluminium | |
| shaft material | Stainless steel | |
| type of ball bearings | 6803ZZ | |
| net weight | 0.57 kg |
| product certifications | CiASchneider Electric interoperability standards | |
|---|---|---|
| marking | CE | |
| ambient air temperature for operation | -40…85 °C | |
| ambient air temperature for storage | -40…85 °C | |
| IP degree of protection | IP64 conforming to IEC 60529 | |
| vibration resistance | 10 gn (f= 10…2000 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 100 gn for 6 ms conforming to IEC 60068-2-27 | |
| resistance to electrostatic discharge | 2 kV (contact discharge) level 2 conforming to IEC 61000-4-24 kV (air discharge) level 2 conforming to IEC 61000-4-2 | |
| resistance to electromagnetic fields | 10 V/m level 3 conforming to IEC 61000-4-3 | |
| resistance to fast transients | 1 kV signal ports level 3 conforming to IEC 61000-4-42 kV power ports level 3 conforming to IEC 61000-4-4 |
| REACh free of SVHC | Yes | |
|---|---|---|
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information |
| Warranty | 18 months |
|---|
