Details
Characteristics

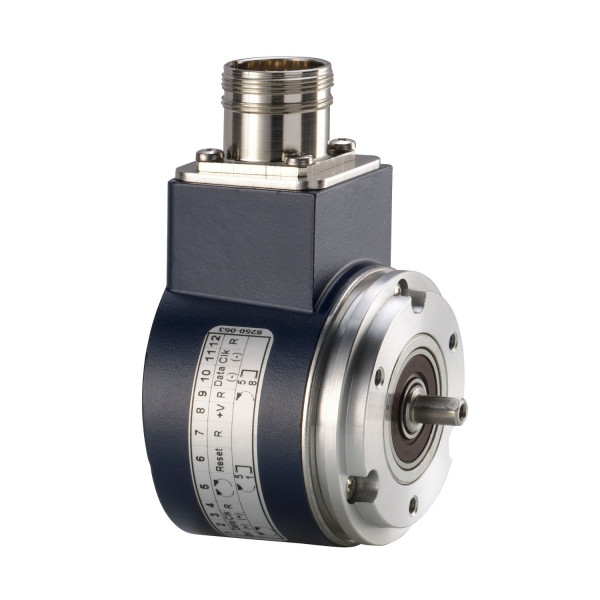

| range of product | OsiSense XCC | |
|---|---|---|
| encoder type | Multiturn absolute encoder | |
| device short name | XCC | |
| product specific application | - | |
| diameter | 58 mm | |
| shaft diameter | 6 mm | |
| shaft type | Solid shaft | |
| resolution | 4096 points/8192 turns | |
| electrical connection | 1 male connector M23 radial 12 pins | |
| output stage | Type SG | |
| type of output stage | SSI 25-bit binary | |
| [Us] rated supply voltage | 11...30 V DC | |
| enclosure material | Steel |
| shaft tolerance | G7 | |
|---|---|---|
| residual ripple | 500 mV | |
| maximum revolution speed | 6000 rpm | |
| shaft moment of inertia | 10 g.cm² | |
| torque value | 0.004 N.m | |
| maximum load | 10 daN radial5 daN axial | |
| output frequency | 100…500 kHz | |
| current consumption | 0...100 mA no-load | |
| protection type | Short-circuit protectionReverse polarity protection | |
| physical interface | RS422 | |
| output level | High level: 2 V minimum 20 mA | |
| surge withstand | 1 kV, level 2 conforming to IEC 61000-4-5 | |
| base material | Aluminium | |
| shaft material | Stainless steel | |
| type of ball bearings | 6900ZZ1 | |
| net weight | 0.725 kg |
| marking | CE | |
|---|---|---|
| ambient air temperature for operation | -20…85 °C | |
| ambient air temperature for storage | -20…85 °C | |
| IP degree of protection | IP65 conforming to IEC 60529 | |
| vibration resistance | 10 gn (f= 10…2000 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 | |
| resistance to electrostatic discharge | 4 kV (contact discharge) level 3 conforming to IEC 61000-4-28 kV (air discharge) level 3 conforming to IEC 61000-4-2 | |
| resistance to electromagnetic fields | 10 V/m level 3 conforming to IEC 61000-4-3 | |
| resistance to fast transients | 1 kV signal ports level 3 conforming to IEC 61000-4-42 kV power ports level 3 conforming to IEC 61000-4-4 |
| REACh Regulation | ||
|---|---|---|
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information |
| Warranty | 18 months |
|---|
