Details
Characteristics
| range | Actassi | |
|---|---|---|

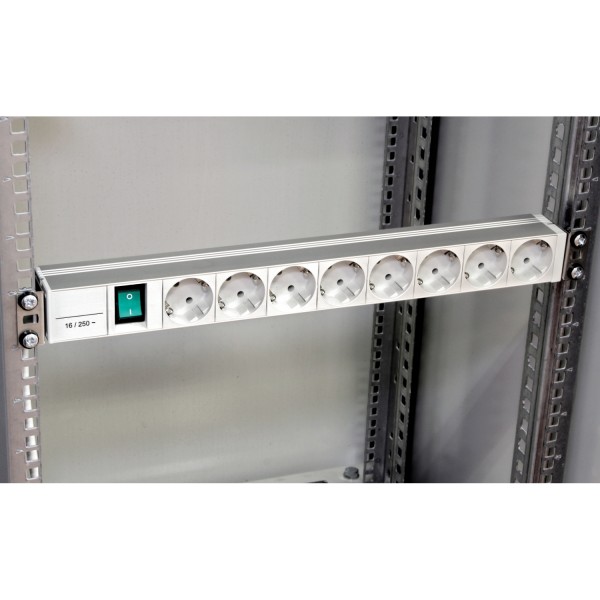

| product or component type | Power distribution rail | |
| device application | Multi-purpose | |
| outlet standard description | Side earth | |
| accessory / separate part category | Current distribution accessory | |
| outlet poles configuration | 2P + E with shutters | |
| quantity per set | Set of 1 | |
| colour | Aluminium |
| device composition | 1 power rail fixing elements | |
|---|---|---|
| ground lug position | 35° ground lug | |
| socket number | 8 | |
| [In] rated current | 16 A | |
| [Ue] rated operational voltage | 230 V AC | |
| control type | Green LED switch | |
| mounting support | Upright19" rack | |
| fixing mode | By bracketsDirect fixing | |
| material | Polyamide 6 with 30 % fibre glass | |
| surface finish | Anodized | |
| electrical connection | 3 m power cord H05VV-F3G1.5 | |
| number of rack unit | 1U | |
| height | 44.45 mm | |
| width | 482.60 mm total: 440 mm body: | |
| depth | 76 mm |
| fire resistance | 850 °C | |
|---|---|---|
| quality labels | VDE | |
| standards | IEC 60884UNE 20315DIN 49440VDE 0620-1 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure |
| Warranty | 18 months |
|---|
