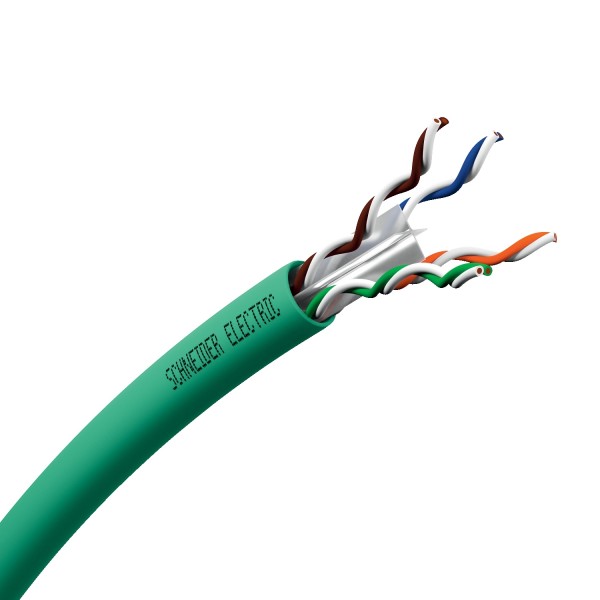

Actassi Cable LAN U/UTP 4P Cat6 Euroclass D 250MHz LSZH 305m

Details

Main
range	Actassi
product or component type	Network cable
cable packaging	Box of 305 m
colour tint	Green
cable shielding type	U/UTP

Complementary
localisation on device	Jacket LSZH (low smoke zero halogen) Conductor: solid bare copper Wire insulation: PE (polyethylene)
type of cable	4 pair cables
communication network category	6
communication port protocol	PoE 15W (Power over Ethernet) PoE+ 30W (Power over Ethernet Plus) VoIP (Voice IP)
communication network type	1000BASE-T
minimum return loss	20 dB 1 MHz 23 dB 4 MHz 25 dB 10 MHz 25 dB 16 MHz 25 dB 20 MHz 23.6 dB 31.25 MHz 21.5 dB 62.5 MHz 20.1 dB 100 MHz 19.4 dB 125 MHz 18 dB 200 MHz 17.3 dB 250 MHz
attenuation	Guaranteed: 2 dB @ 1 MHz Guaranteed: 3.8 dB @ 4 MHz Guaranteed: 6 dB @ 10 MHz Guaranteed: 7.6 dB @ 16 MHz Guaranteed: 8.5 dB @ 20 MHz Guaranteed: 10.7 dB @ 31.25 MHz Guaranteed: 15.4 dB @ 62.5 MHz Guaranteed: 19.8 dB @ 100 MHz Guaranteed: 22.4 dB @ 125 MHz Guaranteed: 29 dB @ 200 MHz Guaranteed: 32.8 dB @ 250 MHz
power sum equal level far end crosstalk [PSELFEXT]	64.8 dB at 1 MHz 53 dB at 4 MHz 45 dB at 10 MHz 40.9 dB at 16 MHz 39 dB at 20 MHz 35.1 dB at 31.25 MHz 29.1 dB at 62.5 MHz 25 dB at 100 MHz 23.1 dB at 125 MHz 19 dB at 200 MHz 17 dB at 250 MHz
power sum near-end crosstalk [PSNEXT]	Guaranteed: 72.3 dB at 1 MHz Guaranteed: 63.3 dB at 4 MHz Guaranteed: 57.3 dB at 10 MHz Guaranteed: 54.2 dB at 16 MHz Guaranteed: 52.8 dB at 20 MHz Guaranteed: 49.9 dB at 31.25 MHz Guaranteed: 45.4 dB at 62.5 MHz Guaranteed: 42.3 dB at 100 MHz Guaranteed: 40.8 dB at 125 MHz Guaranteed: 37.8 dB at 200 MHz Guaranteed: 36.3 dB at 250 MHz
near end crosstalk [NEXT]	Guaranteed: 74.3 dB at 1 MHz Guaranteed: 66.3 dB at 4 MHz Guaranteed: 60.3 dB at 10 MHz Guaranteed: 57.2 dB at 16 MHz Guaranteed: 55.8 dB at 20 MHz Guaranteed: 52.9 dB at 31.25 MHz Guaranteed: 48.4 dB at 62.5 MHz Guaranteed: 45.3 dB at 100 MHz Guaranteed: 43.8 dB at 125 MHz Guaranteed: 40.8 dB at 200 MHz Guaranteed: 39.3 dB at 250 MHz
equal level far end crosstalk [ELFEXT]	Guaranteed: 67.8 dB @ 1 MHz Guaranteed: 67.8 dB Guaranteed: 56 dB @ 4 MHz Guaranteed: 48 dB @ 10 MHz Guaranteed: 56 dB Guaranteed: 43.9 dB @ 16 MHz Guaranteed: 42 dB @ 20 MHz Guaranteed: 38.1 dB @ 31.25 MHz Guaranteed: 48 dB Guaranteed: 32.1 dB @ 62.5 MHz Guaranteed: 43.9 dB Guaranteed: 28 dB @ 100 MHz Guaranteed: 26.1 dB @ 125 MHz Guaranteed: 42 dB Guaranteed: 22 dB @ 200 MHz Guaranteed: 20 dB @ 250 MHz Guaranteed: 38.1 dB Guaranteed: 32.1 dB Guaranteed: 28 dB Guaranteed: 26.1 dB Guaranteed: 22 dB Guaranteed: 20 dB
power sum equal level far end crosstalk [PSELFEXT]	Guaranteed: 64.8 dB @ 1 MHz Guaranteed: 53 dB @ 4 MHz Guaranteed: 45 dB @ 10 MHz Guaranteed: 40.9 dB @ 16 MHz Guaranteed: 39 dB @ 20 MHz Guaranteed: 35.1 dB @ 31.25 MHz Guaranteed: 29.1 dB @ 62.5 MHz Guaranteed: 25 dB @ 100 MHz Guaranteed: 23.1 dB @ 125 MHz Guaranteed: 19 dB @ 200 MHz Guaranteed: 17 dB @ 250 MHz
coupling attenuation	>= 40 dB from 30…100 MHz conforming to IEC 61156-5, ed. 2 type III >= 40 - 20 x log10(f / 100) dB from 100…250 MHz conforming to IEC 61156-5, ed. 2 type III
input impedance	100 Ohm at 1…250 MHz
transverse conversion loss	>= 40 - 10 x log(f) dB from 1…200 MHz conforming to IEC 61156-5, ed. 2.1
segregation class	Class b conforming to EN 50174-2
maximum resistance unbalance	2 %
pulling force	392 N
bending radius	Minimum bending radius during installation: 8 x overall diameter Minimum bending radius after installation: 4 x overall diameter
delay skew	45 ns at 1…250 MHz
euroclass level	Dca s2 d2 a1
nominal velocity propagation	68 %
AWG gauge	AWG 23
calorific value	599 MJ/km
cable outer diameter	5.9 mm
cable weight	40.9 kg
	Europe

Environment
ambient air temperature for installation	0…50 °C
ambient air temperature for storage	-20…60 °C
temperature resistance	60 °C
ambient air temperature for operation	-20…60 °C
directives	2011/65/EU - RoHS directive 2006/95/EC - low voltage directive 305/2011/EU - construction product regulation
flame retardance	LSZH
standards	IEC 60332-1 flame propagation characteristics IEC 60754-2 acidity of combustion gases IEC 61034 smoke generation IEC 61156-5-ed. 2.1 performance EN 50173-1 performance EN 50174-1 performance ANSI/TIA/EIA-568-C.2 performance IEC 60754-1 halogen gas evolution ISO/IEC 14763-2 installation standards ISO/IEC 11801-ed. 2.2, 2011 performance ISO/IEC 11801-ed. 2.1 performance EN 50174-2 installation standards IEEE 802.3af performance EN 50288-6-1 performance IEEE 802.3at performance

Offer Sustainability
Sustainable offer status	Green Premium product
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
