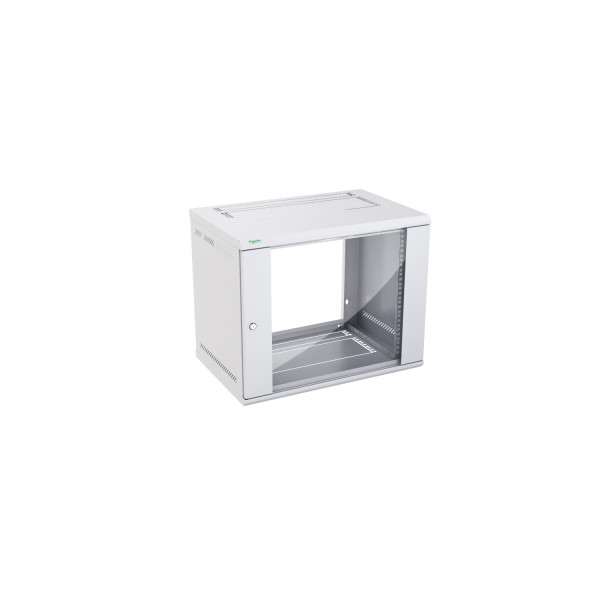

Actassi KDB - Wall-Mounted KD Box 9U D400 F 19" Glazed

Ülevaaded: 0

Tootekood: NSYKDB9U4F

Quick Overview

Saadavus: Tellimisel

270,13 € (ilma KM-ta)

Details

Main
range
Actassi
product name
Actassi KDB
product or component type
19" enclosure
device application
Cabling
applications
To mount 19" equipment
To protect network connectivity equipment
enclosure type
Knock down box
support equipment
2 x 19" uprights recessed of 120 mm from the front (pitch 25 mm)
front face
Glazed door
door type
Front glazed door - with key lock (key: 333) - reversible opening at 180 °
accessibility for operation
Front
Rear
removable parts
Front door removable toolless
colour
Light grey (RAL 7035)
Complementary
device composition
3 x cable entries
1 x glazed door front
2 x panels side
2 x 19" uprights front
1 x dismountable structure
load rating
50 kg static
3 kg by unit
back face
Cut-out
side face
Panel
number of cut-out
1 cut-outside
19" knock down entry cable: top and bottom
19" knock down entry fan plate: top and bottom
installation mode
Wall mounted
material
Sheet steel: structure
Sheet steel: door
Sekurit glass: door
Sheet steel: 19" upright
surface finish
Epoxy-polyester powder
width
600 mm
height
485.1 mm
depth
400 mm
net weight
16.28 kg
number of rack unit
9U
Europe
Environment
IK degree of protection
IK08 conforming to IEC 62262
IP degree of protection
IP20 conforming to IEC 60529
standards
EIA-310E
IEC 60297-3-100
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Circularity Profile
No need of specific recycling operations
Contractual warranty
Warranty
18 months
