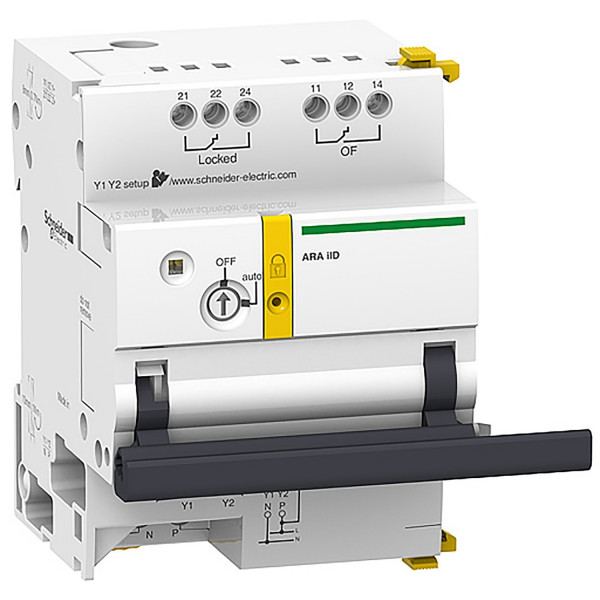

Acti 9 - ARA auto recloser aux for iID 2P

Details

Main
range of product	Acti 9
product or component type	Automatic recloser auxiliary
device short name	ARA iID
signal contacts composition	2 OF volt-free contacts
signalling circuit voltage	24 V 10 mA AC/DC 230 V 1 A AC

Complementary
control type	Inhibition of automatism maintained 230 V AC 50/60 Hz Ultimate reclosing impulse 230 V AC 50/60 Hz
input current	5 mA
impulse duration	>= 200 ms control circuit
response time	< 500 ms
[Us] rated supply voltage	230 V AC 50/60 Hz
power consumption in W	2 W
[Ui] rated insulation voltage	400 V
[Uimp] rated impulse withstand voltage	6 kV
value of setting	Program 1 15 reclosing attemps, long fixed cycle
local signalling	Flashing orange LED not operational Flashing green LED normal operation Flashing red LED reclosing cycle in progress Fixed red LED automatic recloser locked
mounting mode	Clip-on
mounting support	DIN rail
comb busbar and distribution block compatibility	NO
9 mm pitches	7
height	93 mm
width	63 mm
depth	75,5 mm
net weight	440 g
colour	White
electrical durability	5000 cycles
provision for padlocking	Padlockable
wire stripping length	Power supply 10 mm bottom Input 10 mm bottom Output 8 mm top
tightening torque	Power supply 1 N.m Input 1 N.m Output 0,7 N.m
range compatibility	Acti 9 iID residual current circuit breaker (RCCB)
product compatibility	2P iID

Environment
IP degree of protection	IP20IEC 60529 IP40 modular enclosure)IEC 60529
pollution degree	3 IEC 60947
overvoltage category	II
tropicalisation	2
relative humidity	93 % 40 °C
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…60 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
