Details

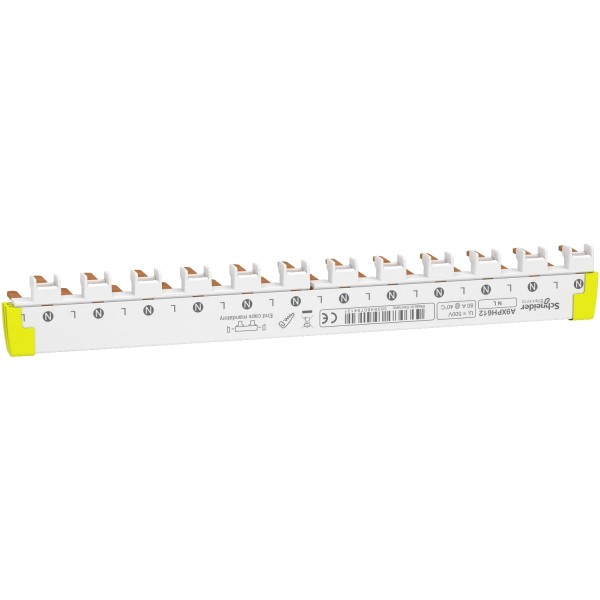

Characteristics
| range | Acti 9 | |
|---|---|---|
| product or component type | Comb busbar | |
| accessory / separate part category | Connection accessory | |
| lines description | 1L + N | |
| Length in 18 mm modules | 12 |
| number of ways | 12 ways N + 1 L | |
|---|---|---|
| poles configuration for 1 way | 1 x 1P + N | |
| connection pitch | 9 mm | |
| connector type | Tooth | |
| distance between way | 18 mm | |
| marking | N L | |
| insulation | Insulated | |
| device presentation | Cuttable | |
| [Ie] rated operational current | 80 A at 40 °C | |
| [Ue] rated operational voltage | 230 V AC Ph/N | |
| [Ui] rated insulation voltage | 500 V AC conforming to IEC 61439-1 | |
| [Uimp] rated impulse withstand voltage | 6 kV | |
| mounting mode | Horizontal | |
| mounting location | Bottom on tunnel type terminals | |
| 9 mm pitches | 24 | |
| width | 220 mm | |
| colour | White (RAL 9003) | |
| range compatibility | Acti 9 iDPNActi 9 iDPN Vigi |
| standards | IEC 60947-7-1IEC 61439-1 | |
|---|---|---|
| fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 | |
| pollution degree | 3 conforming to IEC 60947-7-1 | |
| IP degree of protection | IP20 with end-pieces and tooth covers |
| REACh Regulation | ||
|---|---|---|
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
