Details
Müüdavad tooted
| circuit breaker application | Distribution | |
|---|---|---|
| range | Acti 9 | |
| product or component type | Earth leakage circuit breaker | |

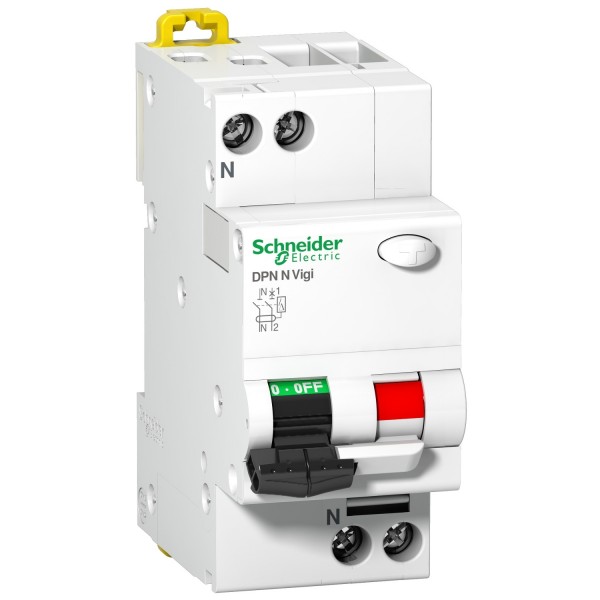

| product name | DPN Vigi | |
| device short name | DPN N Vigi | |
| poles description | 1P + N | |
| neutral position | Left | |
| number of protected poles | 1 | |
| [In] rated current | 16 A 30 °C | |
| network type | AC | |
| trip unit technology | Thermal-magnetic | |
| curve code | C | |
| earth-leakage sensitivity | 30 mA | |
| earth-leakage protection time delay | Instantaneous | |
| type | Type AC | |
| breaking capacity | 6000 A Icn 230 V AC EN 61009 |
| device location in system | Outgoer | |
|---|---|---|
| [Ue] rated operational voltage | 230 V AC | |
| magnetic tripping limit | 5...10 x In | |
| residual current tripping technology | Voltage independent | |
| [Ics] rated service breaking capacity | 6000 A 230 V AC 50/60 Hz EN 61009 | |
| limitation class | 3 EN 61009 | |
| [Ui] rated insulation voltage | 400 V AC EN 61009 | |
| [Uimp] rated impulse withstand voltage | 4 kVEN 61009 | |
| contact position indicator | Yes | |
| control type | Toggle | |
| local signalling | ON/OFF indication | |
| mounting support | DIN rail | |
| 9 mm pitches | 4 | |
| net weight | 0,19 kg | |
| colour | White | |
| mechanical durability | 20000 cycles | |
| electrical durability | 20000 cycles IEC 61009 | |
| connections - terminals | Tunnel type terminals1 10 mm² flexibleTunnel type terminals1 16 mm² rigid | |
| earth-leakage protection | Integrated |
| standards | EN/IEC 61009-2-1EN/IEC 61009-1 | |
|---|---|---|
| pollution degree | 3 EN 61009 | |
| overvoltage category | III | |
| tropicalisation | 2 EN 61009 | |
| relative humidity | 95 % 55 °C | |
| operating altitude | 2000 m | |
| ambient air temperature for operation | -5…60 °C | |
| ambient air temperature for storage | -40…60 °C |
| Jätkusuutliku pakkumise olek | Green Premium toode | |
|---|---|---|
| REACh-määrus | ||
| ELi RoHS direktiiv | Vastavus ELi RoHS deklaratsioon | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave | ||
| Hiina EoHS regulatsioon | ||
| Keskkonnaalane avaldus | ||
| WEEE | Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka. |
| Garantii | 18 months |
|---|
