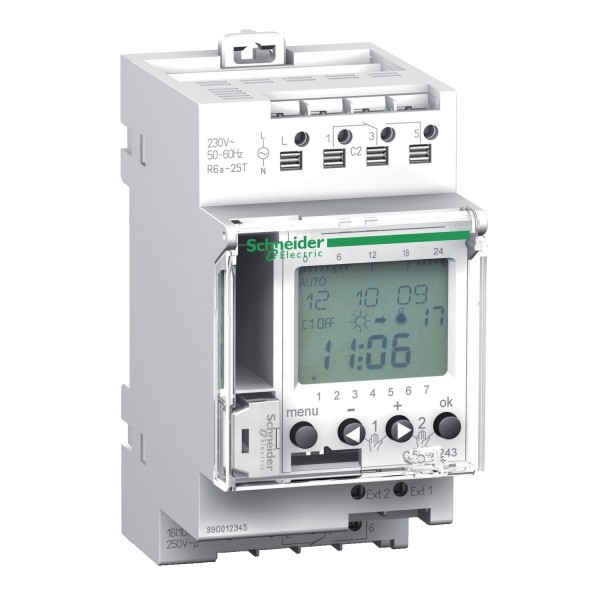

Acti 9 - IC Astro - 2C programmable astronomic twilight switch

Acti 9

Acti 9 IC

Programmable astronomic twilight switch

IC Astro

Memory key

Mechanical compatibility with electrical distribution comb busbars

2

Croatian
Slovak
Bulgarian
Czech
Romanian
French
Polish
Serbian
Hungarian
English
Slovene
Greek
Portuguese
Spanish

Lithium

Weekly programming

Building

6 VA

10 A - 250 V AC pf = 0.6
16 A - 250 V AC pf = 1

230 V AC +10 % -15 % at 50/60 Hz

By calculation of sunrise/sunset times

Coupling with time switch functions
Control by calculation of sunrise/sunset times
Automatic time changeover
Position setting

230 V AC halogen lamp 2300 W
230 V AC incandescent lamp 2300 W
Non-corrected fluorescent tube conventional ballast 10 x 100 W
Parallel-corrected fluorescent tube conventional ballast 10 x 36 W
Serial-corrected fluorescent tube conventional ballast 10 x 100 W
Parallel-corrected fluorescent tube conventional ballast 2 x 100 W
Non-corrected fluorescent tube conventional ballast 20 x 58 W
Serial-corrected fluorescent tube conventional ballast 20 x 58 W
Non-corrected fluorescent tube conventional ballast 26 x 36 W
Serial-corrected fluorescent tube conventional ballast 26 x 36 W
Fluorescent tube electronic ballast 6 x 58 W
Parallel-corrected fluorescent tube conventional ballast 6 x 58 W
Fluocompact lamp electronic ballast 7 x 11 W
Fluocompact lamp electronic ballast 7 x 15 W
Fluocompact lamp electronic ballast 7 x 20 W
Fluocompact lamp electronic ballast 9 x 7 W
Fluorescent tube electronic ballast 9 x 36 W
Dual mounted fluorescent tube 3 electronic ballast 2 x 58 W
Dual mounted fluorescent tube 5 electronic ballast 2 x 36 W
Dual mounted fluorescent tube conventional ballast 26 x 36 W
Dual mounted fluorescent tube conventional ballast 20 x 58 W
Dual mounted fluorescent tube conventional ballast 10 x 100 W
Parallel-corrected mercury and sodium vapour lamps 250 VA

+/- 1 s/day

84

1 min

6 years time and program saving

Backlit LCD

DIN rail

5

2 x 2.5 mm² screwless terminals

85 mm

45 mm

65 mm

132 g

Residential
Small commercial

IC Astro

-25…45 °C

IP20 B

Green Premium product

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

18 months
