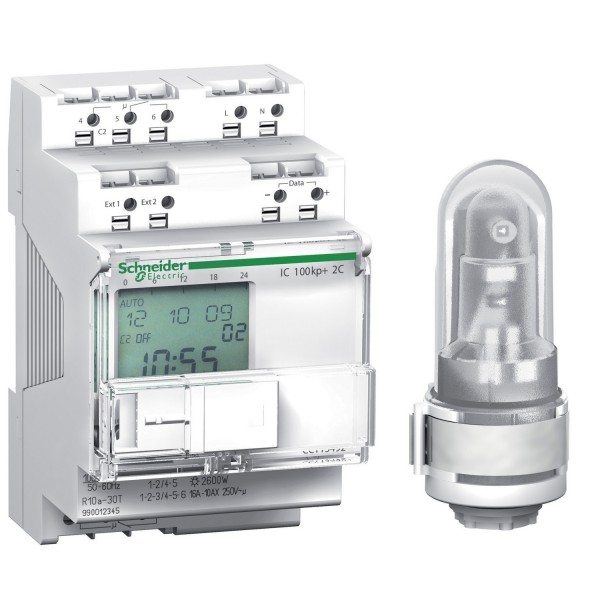

Acti 9 - IC100kp+ - 2C prog twilight switch w. time sw. function - 1...99000 lux

Acti 9

Acti 9 IC

Programmable twilight switch with time switch function

IC100k

Building

programming kit for PC
digital switchboard cell
memory key
digital wall-mounted cell

20 x 58 W dual mounted fluorescent tube with conventional ballast
10 x 100 W non-corrected fluorescent tube with conventional ballast
10 x 100 W serial-corrected fluorescent tube with conventional ballast
2 x 100 W parallel-corrected fluorescent tube with conventional ballast
20 x 58 W non-corrected fluorescent tube with conventional ballast
20 x 58 W serial-corrected fluorescent tube with conventional ballast
26 x 36 W non-corrected fluorescent tube with conventional ballast
26 x 36 W serial-corrected fluorescent tube with conventional ballast
26 x 36 W dual mounted fluorescent tube with conventional ballast
10 x 100 W dual mounted fluorescent tube with conventional ballast
6 x 58 W parallel-corrected fluorescent tube with conventional ballast
230 V AC halogen lamp: 2600 W
230 V AC incandescent lamp: 2600 W
26 x 36 W parallel-corrected fluorescent tube with conventional ballast
18 x 11 W fluocompact lamp with electronic ballast
16 x 15 W fluocompact lamp with electronic ballast
16 x 20 W fluocompact lamp with electronic ballast
14 x 23 W fluocompact lamp with electronic ballast
22 x 7 W fluocompact lamp with electronic ballast
fluorescent tube with electronic ballast: 650 VA
motor: 2300 VA
parallel-corrected mercury and sodium vapour lamps: 800 VA

Lithium

Italian
Ukrainian
Latvian
French
English
Finnish
Danish
German
Swedish
Estonian
Turkish
Lituanien
Russian
Dutch

2

3 VA

100...240 V AC +10 % -15 % at 50/60 Hz

10 A - 250 V AC pf = 0.6
16 A - 250 V AC pf = 1

Class II

84

1 min

By brightness detection

Backlit LCD

<= 60 s (on contact breaking)

10 years

Weekly programming

1…99000 lux

2 x 2.5 mm² screwless terminals

Flexible
Rigid

DIN rail

6

90 mm

54 mm

69 mm

352 g

Small commercial

IC100kp

-30…50 °C

IP20C

EN 60529

Green Premium product

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

18 months
