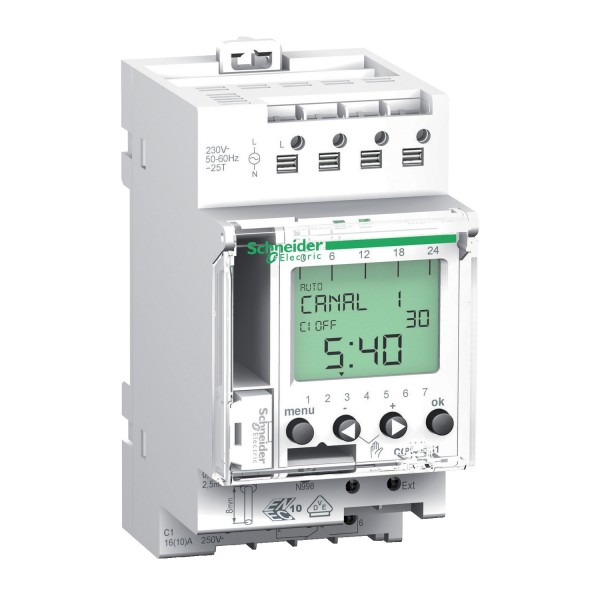

Acti 9 - IHP+ - 1C digital time switch

Details

Main
range of product	Acti 9
product name	Acti 9 IHP
device short name	IHP
product or component type	Programmable digital time switch
device application	Building
battery type	Lithium
number of channels	1
Available equipment	Memory key
language	Russian English Lituanien Estonian Latvian Ukrainian
colour tint	White RAL 9003)

Complementary
product compatibility	Mechanical compatibility with electrical distribution comb busbars
power consumption in VA	4 VA
maximum switching current	10 A - 250 V AC 0,6 16 A - 250 V AC 1
[Ue] rated operational voltage	230 V AC +/- 10 % 50/60 Hz
number of inputs	1 impulse and maintained
accuracy	+/- 1 s/day 20 °C
cycle duration	24 hours + 7 days
maximum number of switchings	84
minimum interval duration	1 s
function available	Pulse programming Automatic winter/summer time changeover
display type	Backlit LCD
battery life	6 year(s)
backup time	6 years time and program saving
type of setting	Absence for holidays function Random function
connections - terminals	screwless terminals
mounting support	DIN rail
9 mm pitches	5
width	45 mm
height	85 mm
depth	66 mm
function	Pulse programming and random function
absence for holidays	Yes
time changeover	Automatic
updated by	None
compatibility code	IHP
market segment	Small commercial

Environment
ambient air temperature for operation	-10…50 °C
IP degree of protection	IP20 B

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
