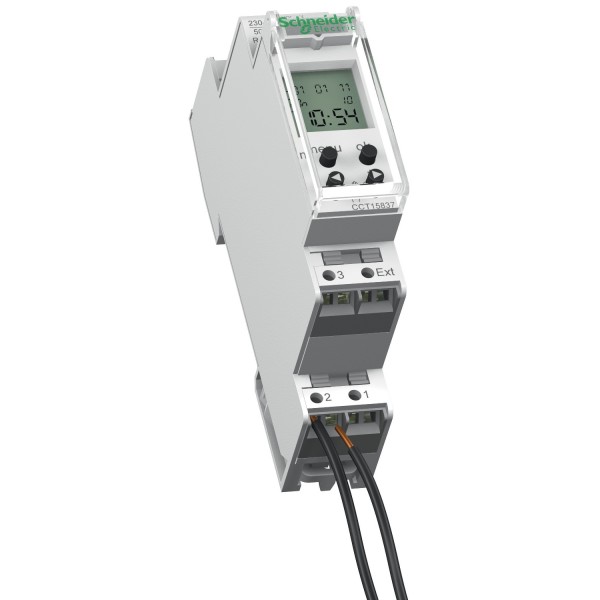

Acti 9 - IHP - 1C digital time switch

Details

Main
range of product	Acti 9
product name	Acti 9 IHP
device short name	IHP
product or component type	Programmable digital time switch
device application	Building
battery type	Lithium
number of channels	1
Available equipment	Memory key Programming kit
language	Portuguese French Dutch Spanish English Italian
colour tint	White (RAL 9003)

Complementary
maximum switching current	16 A - 250 V AC pf = 1 4 A - 250 V AC pf = 0.6
[Ue] rated operational voltage	230 V AC - 15...10 % at 50/60 Hz
number of inputs	1 input(s) impulse and maintained
accuracy	+/- 0.5 s/day 25 °C
cycle duration	24 hours + 7 days
maximum number of switchings	84
minimum interval duration	1 min
display type	LCD
battery life	10 year(s)
backup time	10 years time and program saving
9 mm pitches	2
width	18 mm
height	90 mm
depth	66 mm
net weight	90 g
function	Pulse programming, random function, external input for override
absence for holidays	Yes
time changeover	Automatic
updated by	None
compatibility code	IHP
market segment	Residential Small commercial

Environment
ambient air temperature for operation	-25…55 °C
IP degree of protection	IP20 B

Contractual warranty
Warranty	18 months
