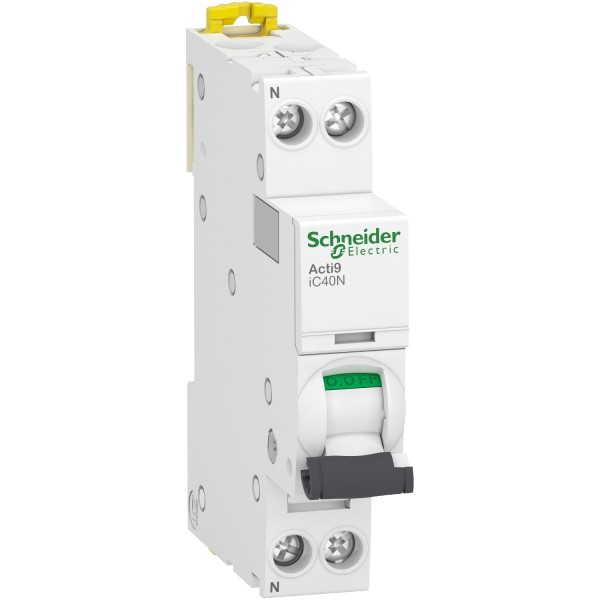

Acti9 iC40N - miniature circuit-breaker - 1P+N - 16A - C Curve

Details

Main
range	Acti9
product name	Acti9 iC40
product or component type	Miniature circuit-breaker
device short name	IC40N
device application	Distribution
poles description	1P + N
number of protected poles	1
neutral position	Left
[In] rated current	16 A
network type	AC
trip unit technology	Thermal-magnetic
curve code	C
breaking capacity	10 kA Icu at 230 V AC 50/60 Hz conforming to EN/IEC 60947-2 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
suitability for isolation	Yes conforming to EN/IEC 60947-2
quality labels	RCM AENOR IMQ OVE

Complementary
network frequency	50/60 Hz
[Ue] rated operational voltage	230 V AC 50/60 Hz
magnetic tripping limit	5...10 x In conforming to EN/IEC 60898-1 8 x In +/- 20 % conforming to EN/IEC 60947-2
[Ics] rated service breaking capacity	6000 A 100 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 7.5 kA 75 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60947-2
limitation class	3 conforming to EN/IEC 60898-1
[Ui] rated insulation voltage	400 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage	4 kV conforming to EN/IEC 60947-2
contact position indicator	Yes
control type	Toggle
local signalling	ON/OFF indication Trip indicator
mounting mode	Clip-on
mounting support	DIN rail
9 mm pitches	2
height	85 mm
width	18 mm
depth	74 mm
net weight	120 g
colour	White
mechanical durability	20000 cycles
electrical durability	20000 cycles
locking options description	Padlocking device
connections - terminals	Tunnel type terminals top or bottom 1…10 mm² flexible Tunnel type terminals top or bottom 1…16 mm² rigid
wire stripping length	14 mm for top or bottom connection
tightening torque	2 N.m top or bottom
earth-leakage protection	Separate block

Environment
standards	EN/IEC 60898-1 EN/IEC 60947-2
product certifications	CE BV RINA DNV
IP degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
pollution degree	3 conforming to EN/IEC 60947-2
relative humidity	95 % at 55 °C
operating altitude	2000 m
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
