  • Acti9 IC60 RCBO - auxiliary contact - 1SD - AC/DC

Product was successfully added to your shopping cart.

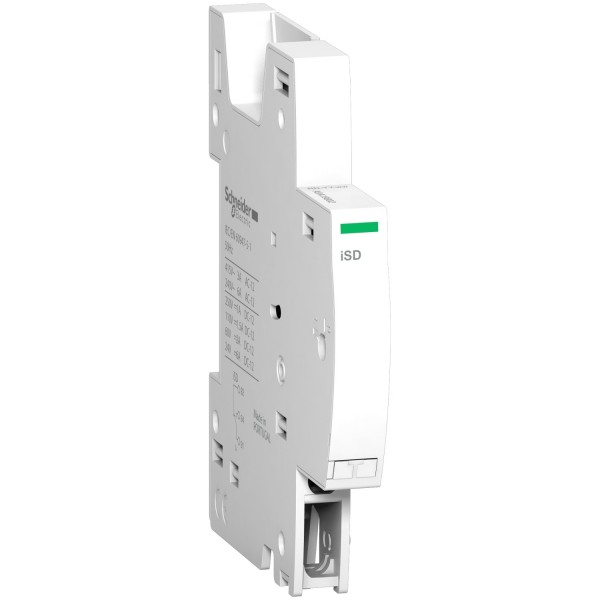

Acti9 IC60 RCBO - auxiliary contact - 1SD - AC/DC

Ülevaaded: 0

Tootekood: A9A19802

Quick Overview

Saadavus: Tellimisel

29,32 € (ilma KM-ta)

Details

Main
range of product
Acti 9
product or component type
Fault contact
device short name
ISD
signal contacts composition
1 C/O
[In] rated current
6 A: 24 V DC
2 A: 60 V DC
1.5 A: 110 V DC
1 A: 250 V DC
6 A: 24...230 V AC - 50 Hz
3 A: 415 V AC - 50 Hz
9 mm pitches
1
Complementary
range compatibility
IC60 RCBO
mounting mode
Clip-on
mounting support
DIN rail
height
86 mm
width
9 mm
depth
71 mm
net weight
35 g
colour
White
connections - terminals
Screw clamp terminal (bottom) 1 cable(s) 0.25…4 mm² - rigid
Screw clamp terminal (bottom) 1 cable(s) 0.25…2.5 mm² - flexible
Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - rigid
Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible
Screw clamp terminal (bottom) 1 cable(s) 2.5 mm² - flexible with ferrule
wire stripping length
6 mm for bottom connection
tightening torque
0.6 N.m bottom
Environment
standards
EN/IEC 60947-5-1
ambient air temperature for operation
-25…60 °C
ambient air temperature for storage
-40…70 °C
Offer Sustainability
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
