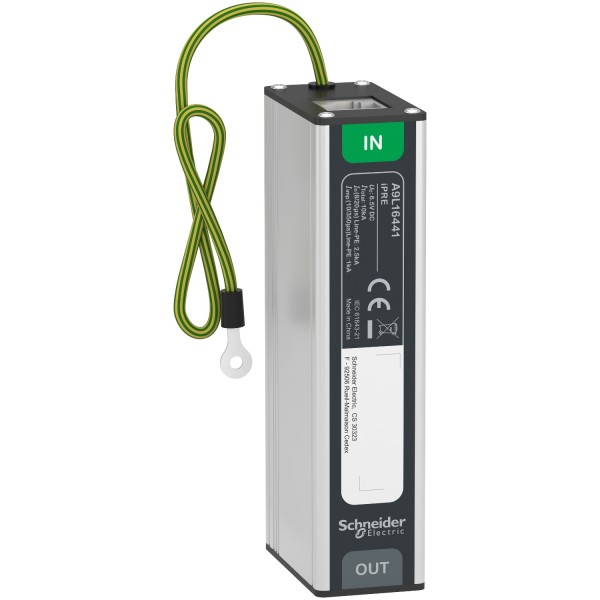

Acti9 iPRE ethernet network 250 MHz surge protection device

Details

Complementary
remote signalling	Without
surge arrester technology	GDT + diode
[In] rated current	0.3 A
[Ue] rated operational voltage	5 V DC
nominal discharge current	2.5 kA line to earth 8/20 µs C2 0.25 kA line to line 8/20 µs C1 0.5 kA line to earth 8/20 µs C1
maximum discharge current	10 kA 8/20 µs C2
[Iimp] impulse current	1 kA line to earth 10/350 µs class D1
[Uc] maximum continuous operating voltage	6.5 V DC
maximum [Up] voltage protection level	Differential mode <35 V L+/L- Common mode <500 V L+/PE
[I total] discharge current	10 kA
cut-off frequency	3 dB at 250 MHz
mounting mode	Socket-mounted
mounting support	35 mm symmetrical DIN rail
9 mm pitches	2
height	106 mm
width	25 mm
depth	45.2 mm
net weight	105 g
colour	Grey
material	Aluminium
response time	< 1 ns
insulation resistance	>= 5 MOhm
type of cable	Twisted shielded cable 4 pairs

Environment
standards	IEC 61643-21 EN 61643-21
IP degree of protection	IP20 conforming to IEC 60529
relative humidity	5…95 % conforming to IEC 61643-21
operating altitude	2000 m conforming to IEC 61643-21
ambient air temperature for operation	-40…70 °C
ambient air temperature for storage	-40…70 °C
