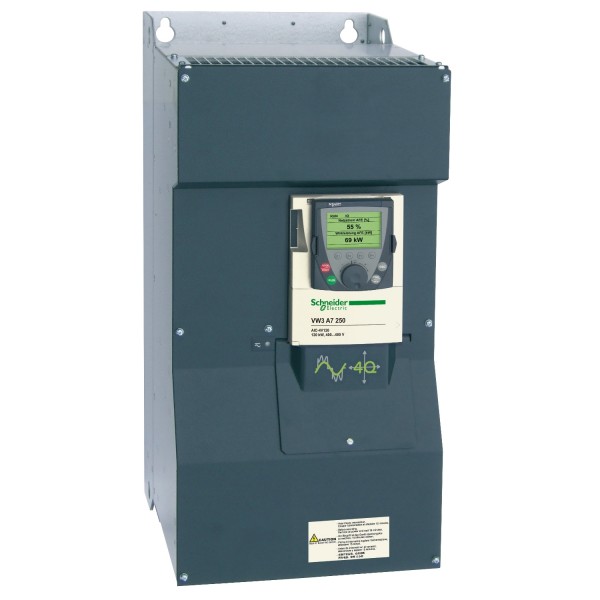

active infeed converter - 340 kW - 380...480 V

Product was successfully added to your shopping cart.

active infeed converter - 340 kW - 380...480 V

Tootekood: VW3A7255

Quick Overview

Saadavus: Tellimisel

21 094,60 € (ilma KM-ta)

Qty:

Details

Main
device short name	AIC
network number of phases	3 phases
[Us] rated supply voltage	380...480 V +/- 10 %
network frequency	50/60 Hz
rated power in W	340 kW
range compatibility	Altivar 71 Altivar 61
product specific application	Component of the Active Front End Energy regeneration Low harmonics
product compatibility	ATV61HC31N4D 380...440 V AC with one variable speed drive ATV71HC25N4D 380...440 V AC with one variable speed drive ATV61HC31N4D 480 V AC with one variable speed drive ATV71HC25N4D 480 V AC with one variable speed drive ATV61H075N4...C63N4D DC with several variable speed drive on a common DC bus ATV71H075N4...C50N4D DC with several variable speed drive on a common DC bus
assembly style	Built-in unit
type of cooling	Forced convection

Complementary
line current	495 A at 400 V 495 A at 480 V
input power	342 kW at 400 V 396 kW at 480 V
continuous output current	517 A at 400 V 517 A at 480 V
output voltage	650 V DC - supply: 380...400 V AC 720 V DC - supply: 440 V AC 770 V DC - supply: 480 V AC
thermal losses	5800 W
max current	1.20 x nominal current (duration = 60 s) 1.35 x nominal current (duration = 2 s)
maximum voltage drop at rated load	<30 % at 380...400 V, <= 60 s <40 % at 440 V, <= 60 s <40 % at 480 V, <= 60 s
communication port protocol	Modbus CANopen
connector type	1 RJ45 for Modbus Male SUB-D 9 on RJ45 for CANopen
option card	Communication bridge
operating position	Vertical +/- 10 degree
height	950 mm
width	585 mm
depth	377 mm
net weight	140 kg

Environment
environmental characteristic	3K3 conforming to EN/IEC 60721-3-3 3C2 conforming to EN 60721-3-3 3S2 conforming to EN 60721-3-3
relative humidity	0…95 %
ambient air temperature for operation	45…60 °C (with current derating of 2 % per °C) -10…45 °C
ambient air temperature for storage	-25…70 °C
operating altitude	<= 1000 m without 1000...3000 m with current derating 1 % per 100 m
pollution degree	2 conforming to EN 61800-5-1
vibration resistance	1.5 mm (f= 3…10 Hz) conforming to EN/IEC 60068-2-6 0.6 gn (f= 10…200 Hz) conforming to EN/IEC 60068-2-6
shock resistance	4 gn for 11 ms conforming to EN/IEC 60721-3-3
air flow surface	1000 cm²
volume of cooling air	1200 m3/h for power circuit 330 m3/h for control circuit
IP degree of protection	IP00
standards	EN/IEC 61800-5-1
product certifications	UL (pending) CSA (pending) CE

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
