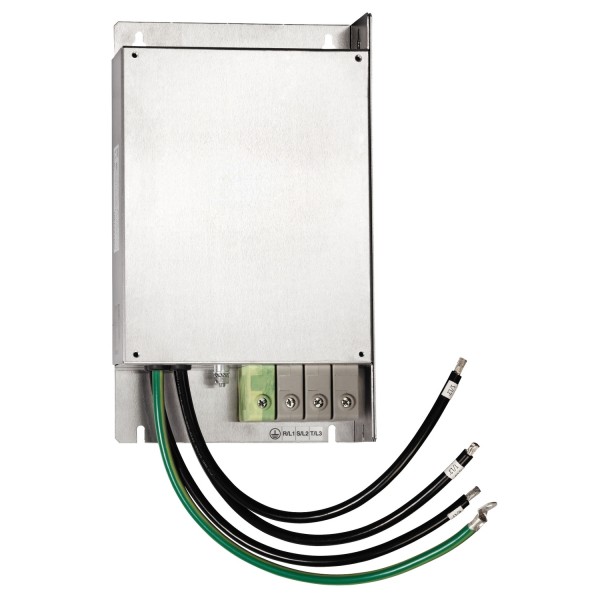

additionnal EMC filter - 15 A - 3 PH

Product was successfully added to your shopping cart.

additionnal EMC filter - 15 A - 3 PH

Tootekood: VW3A4422

Quick Overview

Saadavus: Tellimisel

94,97 € (ilma KM-ta)

Qty:

Details

Main
range of product	Altivar Lexium
product or component type	EMC input filter
range compatibility	Altivar 32 Altivar Machine ATV340 Lexium 32 Altivar Machine ATV320 Lexium 28 Lexium 52
product compatibility	LXM28A ATV32, 380...500 V, 0.37...1.5 kW LXM32, three-phase, line current 1.2...8.7 A Variable speed drive ATV320...B at 0.37 kW, 380...500 V, three phase Variable speed drive ATV320...B at 0.55 kW, 380...500 V, three phase Variable speed drive ATV320...B at 0.75 kW, 380...500 V, three phase Variable speed drive ATV320...B at 1.1 kW, 380...500 V, three phase Variable speed drive ATV320...B at 1.5 kW, 380...500 V, three phase Variable speed drive ATV320...B at 2.2 kW, 380...500 V, three phase Variable speed drive ATV320...B at 3 kW, 380...500 V, three phase Variable speed drive ATV320...B at 4 kW, 380...500 V, three phase Variable speed drive ATV340 at 0.75 kW, 380...480 V Variable speed drive ATV340 at 1.5 kW, 380...480 V
product specific application	Radio interference input filter
mounting location	At variable speed drive side
network number of phases	Three phase

Complementary
maximum cable distance between devices	20 m conforming to IEC 61800-3 category C1 50 m conforming to IEC 61800-3 category C2 100 m conforming to IEC 61800-3 category C3
[In] rated current	15 A
thermal losses	9.9 W
network rated voltage	380…500 V
tolerance	- 15...10 %
net weight	0.9 kg
emc filter compatibility	Type 022

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration

Contractual warranty
Warranty	18 months
