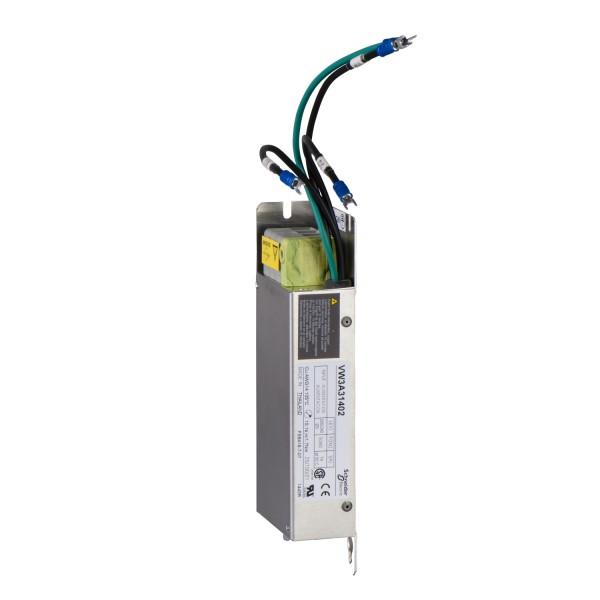

additionnal EMC filter S1 S2 M3 - 3-phase supply - 7 A

Tootekood: VW3A31402

Quick Overview

Saadavus: Tellimisel

77,15 € (ilma KM-ta)

Qty:

Details

Main
range of product	Altivar
product or component type	EMC input filter
range compatibility	Lexium 05 Altivar 312 Solar Altivar 312 Altivar Machine ATV320
product compatibility	ATV312H018M3 ATV312H037M3 ATV312H055M3 ATV312H075M3 LXM05AD10M3X LXM05BD10M3X Variable speed drive ATV320...C0,18 kW, 200...240 V three phase Variable speed drive ATV320...C0,37 kW, 200...240 V three phase Variable speed drive ATV320...C0,55 kW, 200...240 V three phase Variable speed drive ATV320...C0,75 kW, 200...240 V three phase
product specific application	Radio interference input filter
[In] rated current	7 A
thermal losses	2,6 W ATV31H018M3X
network number of phases	Three phase

Complementary
maximum earth leakage current	7 mA 50 Hz
power supply voltage	200…240 V
tolerance	10 %
net weight	0,65 kg 0,55 kg

Environment
IP degree of protection	IP20 IP41 upper part)
relative humidity	0…93 % IEC 68-2-3
ambient air temperature for operation	-10…50 °C
ambient air temperature for storage	-25…70 °C
operating altitude	<= 1000 m without current derating 1000...3000 m with current derating 1 % per 100 m
vibration resistance	1 gn 13…150 Hz)IEC 60068-2-6 1.5 mm peak to peak 3…13 Hz)IEC 60068-2-6
shock resistance	15 gn 11 ms EN/IEC 60068-2-27
standards	EN 133200 EN/IEC 61800-3

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
