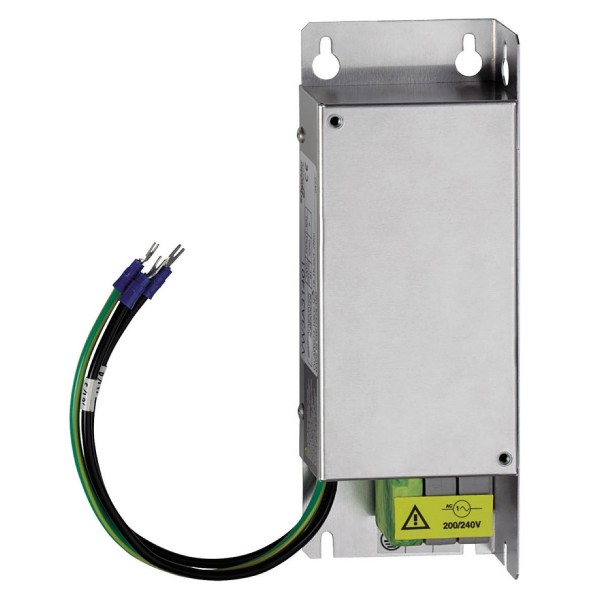

additionnal EMC filter S3 S4 M2 - 1-phase supply - 9 A

Tootekood: VW3A31401

Quick Overview

Saadavus: Tellimisel

62,24 € (ilma KM-ta)

Qty:

Details

Main
range of product	Altivar
product or component type	EMC input filter
range compatibility	Lexium SD3 Altivar 312 Solar Lexium 23 Plus Altivar Machine ATV320 Altivar 312 Altivar 31C Lexium 05
product compatibility	Servo drive LXM230,1 kW Servo drive LXM230,2 kW Servo drive LXM230,4 kW ATV312H018M2 ATV312H037M2 ATV312H055M2 ATV312H075M2 ATV31C018M2 ATV31C037M2 ATV31C055M2 ATV31C075M2 LXM05AD10F1 LXM05AD10M2 LXM05BD10F1 LXM05BD10M2 LXM05CD10M2 Variable speed drive ATV320...C0,18 kW, 200...240 V single phase Variable speed drive ATV320...C0,37 kW, 200...240 V single phase Variable speed drive ATV320...C0,55 kW, 200...240 V single phase Variable speed drive ATV320...C0,75 kW, 200...240 V single phase Variable speed drive ATV320...W/ATV320...WS0,18 kW, 200...240 V single phase Variable speed drive ATV320...W/ATV320...WS0,37 kW, 200...240 V single phase Variable speed drive ATV320...W/ATV320...WS0,55 kW, 200...240 V single phase Variable speed drive ATV320...W/ATV320...WS0,75 kW, 200...240 V single phase
product specific application	Radio interference input filter
[In] rated current	9 A
thermal losses	3,7 W ATV31C018M2
network number of phases	Single phase

Complementary
maximum earth leakage current	100 mA 50 Hz
power supply voltage	200…240 V
tolerance	10 %
net weight	0,6 kg

Environment
IP degree of protection	IP20 IP41 upper part)
relative humidity	0…93 % IEC 68-2-3
ambient air temperature for operation	-10…50 °C
ambient air temperature for storage	-25…70 °C
operating altitude	<= 1000 m without current derating 1000...3000 m with current derating 1 % per 100 m
vibration resistance	1 gn 13…150 Hz)IEC 60068-2-6 1.5 mm peak to peak 3…13 Hz)IEC 60068-2-6
shock resistance	15 gn 11 ms EN/IEC 60068-2-27
standards	EN 133200 EN/IEC 61800-3

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
