additionnal EMC footprint filter S3 - 3-phase supply - 26 A

Product was successfully added to your shopping cart.

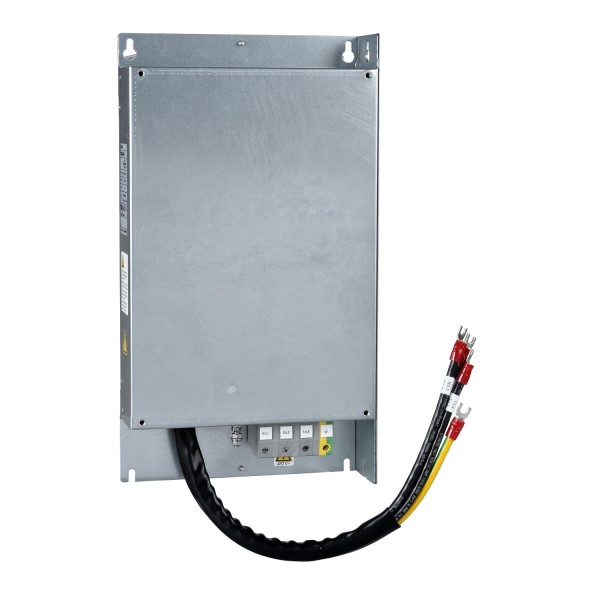

additionnal EMC footprint filter S3 - 3-phase supply - 26 A

Tootekood: VW3A4402

Quick Overview

Saadavus: Tellimisel

149,65 € (ilma KM-ta)

Qty:

Details

Main
range of product	Altivar
product or component type	EMC input filter
range compatibility	Altivar 61 Altivar 71
product compatibility	ATV61HU22M3 ATV61HU30M3 ATV61HU30N4 ATV61HU40M3 ATV61HU40N4 ATV71HU22M3 ATV71HU30M3 ATV71HU30N4 ATV71HU40M3 ATV71HU40N4 ATV71PU30N4Z ATV71PU40N4Z ATV71WU30N4 ATV71WU40N4
product specific application	Radio interference input filter
[In] rated current	26 A
thermal losses	18 W 200...240 V AC ATV61/ATV71 variable speed drives 6 W 380...480 V AC ATV61/ATV71 variable speed drives
network number of phases	Three phase

Complementary
electrical connection	Terminal 6 mm² AWG 8
tightening torque	1,5 N.m
maximum earth leakage current	8 mA 400 V 50 Hz 4,4 mA 400 V 50 Hz
power supply voltage	200…240 V 380…500 V
tolerance	10 %
net weight	4 kg

Environment
IP degree of protection	IP20 IP41 upper part)
relative humidity	0…93 % IEC 68-2-3
ambient air temperature for operation	-10…50 °C
ambient air temperature for storage	-40…65 °C
operating altitude	1000...3000 m with current derating 1 % per 100 m
vibration resistance	1 gn 13…150 Hz)IEC 60068-2-6 1.5 mm peak to peak 3…13 Hz)IEC 60068-2-6
shock resistance	15 gn 11 ms EN/IEC 60068-2-27
standards	EN 133200 EN/IEC 61800-3

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
