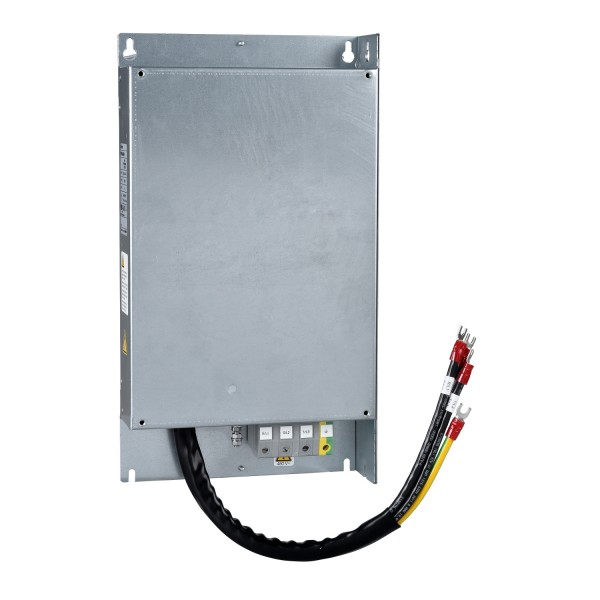

additionnal EMC footprint filter S5A - 3-phase supply - 46 A

Ülevaaded: 0

Tootekood: VW3A4404

Quick Overview

Saadavus: Tellimisel

259,57 € (ilma KM-ta)

Details

Main
range of product
Altivar
product or component type
EMC input filter
range compatibility
Altivar 61
Altivar 71
product compatibility
ATV61HD11N4
ATV61HU75M3
ATV71HD11N4
ATV71HU75M3
ATV71PD11N4Z
ATV71WD11N4
product specific application
Radio interference input filter
[In] rated current
46 A
thermal losses
13 W 380...480 V AC ATV61/ATV71 variable speed drives
19 W 200...240 V AC ATV61/ATV71 variable speed drives
network number of phases
Three phase
Complementary
electrical connection
Terminal 16 mm² AWG 4
tightening torque
2 N.m
maximum earth leakage current
14 mA 400 V 50 Hz
4 mA 400 V 50 Hz
power supply voltage
200…240 V
380…500 V
tolerance
10 %
net weight
7 kg
Environment
IP degree of protection
IP20
IP41 upper part)
relative humidity
0…93 % IEC 68-2-3
ambient air temperature for operation
-10…50 °C
ambient air temperature for storage
-40…65 °C
operating altitude
<= 1000 m without current derating
1000...3000 m with current derating 1 % per 100 m
vibration resistance
1 gn 13…150 Hz)IEC 60068-2-6
1.5 mm peak to peak 3…13 Hz)IEC 60068-2-6
shock resistance
15 gn 11 ms EN/IEC 60068-2-27
standards
EN 133200
EN/IEC 61800-3
Offer Sustainability
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Contractual warranty
Garantii
18 months
