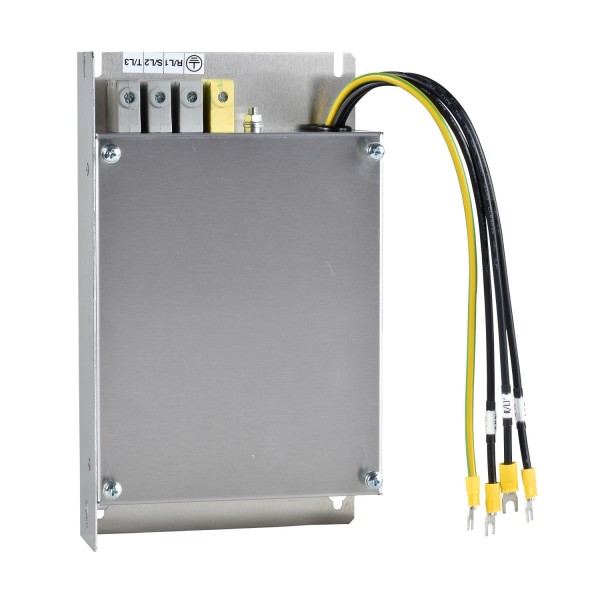

additionnal EMC input filter - 3-phase supply - 15 A

Product was successfully added to your shopping cart.

additionnal EMC input filter - 3-phase supply - 15 A

Tootekood: VW3A31404

Quick Overview

Saadavus: Tellimisel

95,24 € (ilma KM-ta)

Qty:

Details

Main
range of product	Altivar
product or component type	EMC input filter
range compatibility	Altivar 31C Lexium 23 Plus Altivar 312 Altivar 312 Solar Altivar Machine ATV320 Lexium 05 Altivar 212
product compatibility	Servo drive LXM230,75 kW Servo drive LXM231 kW Servo drive LXM231,5 kW Servo drive LXM232 kW Servo drive LXM233 kW ATV212H075M3X ATV212H075N4 ATV212HU15M3X ATV212HU15N4 ATV212HU22M3X ATV212HU22N4 ATV31C037N4 ATV31C055N4 ATV31C075N4 ATV31CU11N4 ATV31CU15N4 LXM05AD14N4 LXM05AD17M3X LXM05BD14N4 LXM05BD17M3X LXM05CD14N4 ATV312HU11M3 ATV312HU15M3 ATV312HU22M3 ATV312H037N4 ATV312H055N4 ATV312H075N4 ATV312HU11N4 ATV312HU15N4 Variable speed drive ATV320...C0,37 kW, 380...500 V three phase Variable speed drive ATV320...C0,55 kW, 380...500 V three phase Variable speed drive ATV320...C0,75 kW, 380...500 V three phase Variable speed drive ATV320...C1,1 kW, 380...500 V three phase Variable speed drive ATV320...C1,5 kW, 380...500 V three phase Variable speed drive ATV320...C1,1 kW, 200...240 V three phase Variable speed drive ATV320...C1,5 kW, 200...240 V three phase Variable speed drive ATV320...C2,2 kW, 200...240 V three phase Variable speed drive ATV320...W/ATV320...WS0,37 kW, 380...500 V three phase Variable speed drive ATV320...W/ATV320...WS0,55 kW, 380...500 V three phase Variable speed drive ATV320...W/ATV320...WS0,75 kW, 380...500 V three phase Variable speed drive ATV320...W/ATV320...WS1,1 kW, 380...500 V three phase Variable speed drive ATV320...W/ATV320...WS1,5 kW, 380...500 V three phase
product specific application	Radio interference input filter
[In] rated current	15 A
thermal losses	0,13 W ATV21H075N4 0,45 W ATV21HU15N4 0,47 W ATV21H075M3X 0,9 W ATV21HU22N4 1,6 W ATV21HU15M3X 3,3 W ATV21HU22M3X 9,9 W ATV31HU11M3X
network number of phases	Three phase

Complementary
electrical connection	Terminal 10 mm² AWG 6
tightening torque	1,8 N.m
maximum earth leakage current	15 mA 200...480 V 50 Hz 13,8 mA 480 V 60 Hz 6,7 mA 230 V 60 Hz
power supply voltage	200…240 V 380…500 V
tolerance	10 %
net weight	1 kg

Environment
IP degree of protection	IP20 IP41 upper part)
relative humidity	0…93 % IEC 68-2-3
ambient air temperature for operation	-10…50 °C
ambient air temperature for storage	-25…70 °C
operating altitude	<= 1000 m without current derating <= 1000 m without 1000...3000 m with current derating 1 % per 100 m
vibration resistance	1 gn 13…150 Hz)IEC 60068-2-6 1.5 mm peak to peak 3…13 Hz)IEC 60068-2-6
shock resistance	15 gn 11 ms EN/IEC 60068-2-27
standards	EN 133200 EN/IEC 61800-3

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
