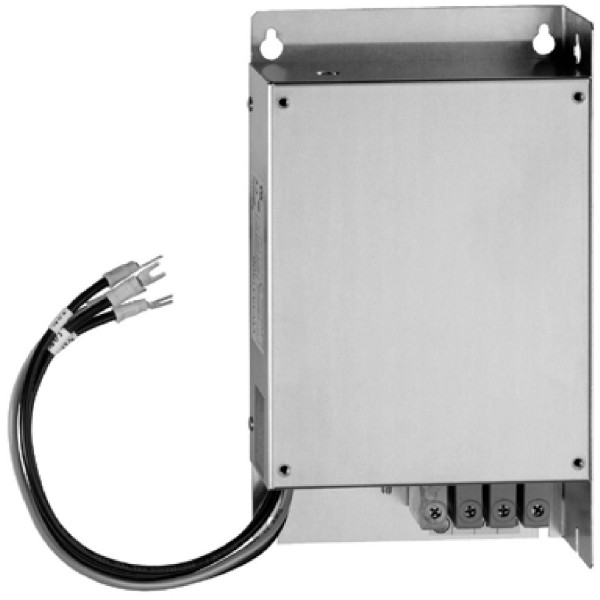

additionnal EMC input filter - 3-phase supply - 180 A

Product was successfully added to your shopping cart.

additionnal EMC input filter - 3-phase supply - 180 A

Tootekood: VW3A4408

Quick Overview

Saadavus: Tellimisel

1 165,03 € (ilma KM-ta)

Qty:

Details

Main
range of product	Altivar
product or component type	EMC input filter
range compatibility	Altivar 61 Altivar 71 Altivar 212
product compatibility	ATV212HD30M3X ATV212HD55N4 ATV212HD75N4 ATV61HD30M3X ATV61HD37M3X ATV61HD45M3X ATV61HD45N4 ATV61HD55N4 ATV61HD75N4 ATV71HD30M3X ATV71HD37M3X ATV71HD45M3X ATV71HD45N4 ATV71HD55N4 ATV71HD75N4 ATV71WD45N4 ATV71WD55N4 ATV71WD75N4
product specific application	Radio interference input filter
[In] rated current	180 A
thermal losses	18 W ATV21HD55N4 34 W ATV21HD75N4 23,1 W ATV21HD30M3X 58 W ATV61/ATV71 variable speed drives
network number of phases	Three phase

Complementary
electrical connection	Terminal 150 mm² 300 kcmil
tightening torque	25 N.m
maximum earth leakage current	140 mA 400 V 50 Hz 193 mA 480 V 60 Hz 80 mA 400 V 50 Hz 86,3 mA 480 V 60 Hz
power supply voltage	380…500 V 200…240 V
tolerance	10 %
net weight	40 kg

Environment
IP degree of protection	IP20 IP41 upper part)
relative humidity	0…93 % IEC 68-2-3
ambient air temperature for operation	-10…50 °C
ambient air temperature for storage	-40…65 °C
operating altitude	<= 1000 m without current derating <= 1000 m without 1000...3000 m with current derating 1 % per 100 m
vibration resistance	1 gn 13…150 Hz)IEC 60068-2-6 1.5 mm peak to peak 3…13 Hz)IEC 60068-2-6
shock resistance	15 gn 11 ms EN/IEC 60068-2-27
standards	EN 133200 EN/IEC 61800-3

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
