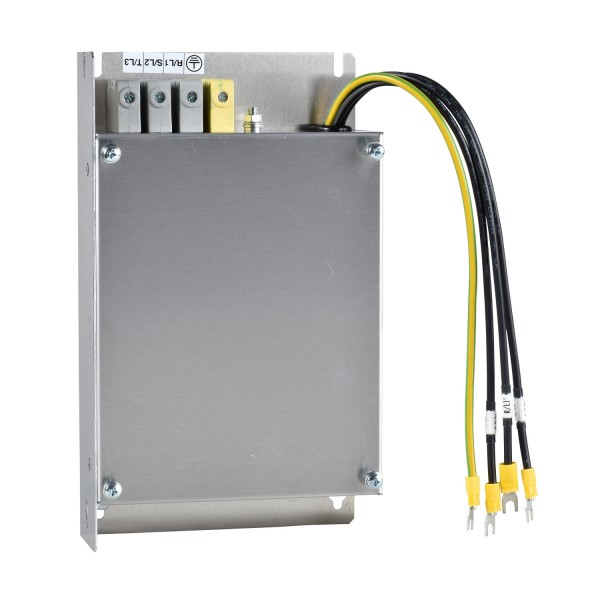

additionnal EMC input filter - 3-phase supply - 25 A

Ülevaaded: 0

Tootekood: VW3A31406

Quick Overview

Saadavus: Tellimisel

139,41 € (ilma KM-ta)

Details

Main
range of product
Altivar
product or component type
EMC input filter
range compatibility
Altivar Machine ATV320
Lexium 23 Plus
Altivar 212
Altivar 31C
Lexium 05
Altivar 312
Altivar 312 Solar
product compatibility
Servo drive LXM234,5 kW
Servo drive LXM235,5 kW
ATV212HU30M3X
ATV212HU30N4
ATV212HU40M3X
ATV212HU40N4
ATV212HU55N4
ATV31CU22N4
ATV31CU30N4
ATV31CU40N4
LXM05AD22N4
LXM05AD34N4
LXM05AD42M3X
LXM05BD22N4
LXM05BD34N4
LXM05BD42M3X
LXM05CD22N4
LXM05CD34N4
ATV312HU22N4
ATV312HU30N4
ATV312HU40N4
ATV312HU30M3
ATV312HU40M3
Variable speed drive ATV320...C2,2 kW, 380...500 V three phase
Variable speed drive ATV320...C3 kW, 380...500 V three phase
Variable speed drive ATV320...C4 kW, 380...500 V three phase
Variable speed drive ATV320...C3 kW, 200...240 V three phase
Variable speed drive ATV320...C4 kW, 200...240 V three phase
Variable speed drive ATV320...W/ATV320...WS2,2 kW, 380...500 V three phase
Variable speed drive ATV320...W/ATV320...WS3 kW, 380...500 V three phase
Variable speed drive ATV320...W/ATV320...WS4 kW, 380...500 V three phase
product specific application
Radio interference input filter
[In] rated current
25 A
thermal losses
1 W ATV21HU30N4
3 W ATV21HU55N4
1,6 W ATV21HU40N4
15,8 W ATV31CU22N4
3,6 W ATV21HU30M3X
6,2 W ATV21HU40M3X
network number of phases
Three phase
Complementary
electrical connection
Terminal 10 mm² AWG 6
tightening torque
1,8 N.m
maximum earth leakage current
35 mA 50 Hz
37 mA 480 V 60 Hz
17,8 mA 480 V 60 Hz
power supply voltage
380…500 V
200…240 V
tolerance
10 %
net weight
1,65 kg
1,35 kg
Environment
IP degree of protection
IP20
IP41 upper part)
relative humidity
0…93 % IEC 68-2-3
ambient air temperature for operation
-10…50 °C
ambient air temperature for storage
-25…70 °C
operating altitude
<= 1000 m without current derating
1000...3000 m with current derating 1 % per 100 m
vibration resistance
1 gn 13…150 Hz)IEC 60068-2-6
1.5 mm peak to peak 3…13 Hz)IEC 60068-2-6
shock resistance
15 gn 11 ms EN/IEC 60068-2-27
standards
EN 133200
EN/IEC 61800-3
Offer Sustainability
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Contractual warranty
Garantii
18 months
