additionnal EMC input filter - 3-phase supply - 83 A

Product was successfully added to your shopping cart.

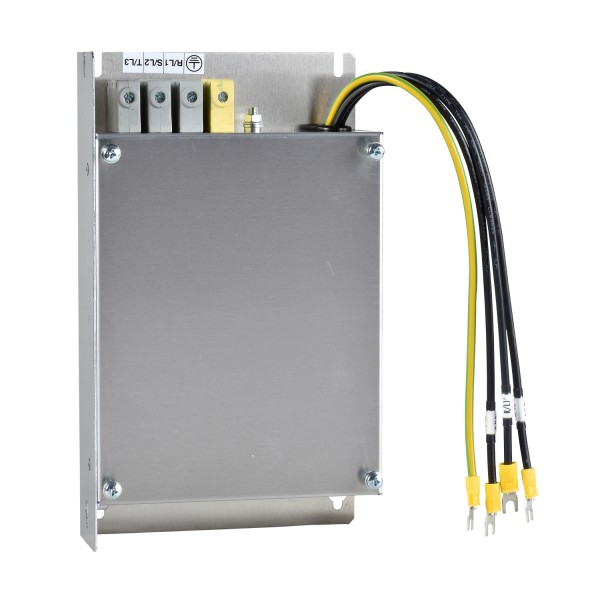

additionnal EMC input filter - 3-phase supply - 83 A

Tootekood: VW3A31408

Quick Overview

Saadavus: Tellimisel

401,89 € (ilma KM-ta)

Qty:

Details

Main
range of product	Altivar
product or component type	EMC input filter
range compatibility	Altivar 312 Altivar Machine ATV320 Altivar 212
product compatibility	ATV212HD11M3X ATV212HD15M3X ATV212HD18M3X ATV312HD11M3 ATV312HD15M3 Variable speed drive ATV320...C11 kW, 200...240 V three phase Variable speed drive ATV320...C15 kW, 200...240 V three phase
product specific application	Radio interference input filter
[In] rated current	83 A
thermal losses	16 W ATV21HD15M3X 23,1 W ATV21HD18M3X 35,2 W ATV31HD11M3X 9,1 W ATV21HD11M3X
network number of phases	Three phase

Complementary
electrical connection	Terminal 25 mm² AWG 2
tightening torque	4,5 N.m
maximum earth leakage current	14,5 mA 480 V 60 Hz
power supply voltage	200…240 V
tolerance	10 %
net weight	5,3 kg

Environment
IP degree of protection	IP20 IP41 upper part)
relative humidity	0…93 % IEC 68-2-3
ambient air temperature for operation	-10…50 °C
ambient air temperature for storage	-25…70 °C
operating altitude	<= 1000 m without current derating <= 1000 m without 1000...3000 m with current derating 1 % per 100 m
vibration resistance	1 gn 13…150 Hz)IEC 60068-2-6 1.5 mm peak to peak 3…13 Hz)IEC 60068-2-6
shock resistance	15 gn 11 ms EN/IEC 60068-2-27
standards	EN 133200 EN/IEC 61800-3

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
