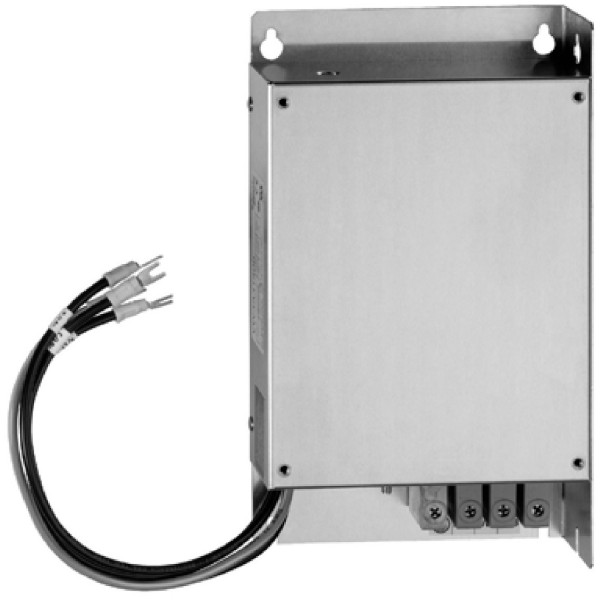

additionnal EMC input filter - 3-phase supply - 90 A

Product was successfully added to your shopping cart.

additionnal EMC input filter - 3-phase supply - 90 A

Tootekood: VW3A4406

Quick Overview

Saadavus: Tellimisel

590,40 € (ilma KM-ta)

Qty:

Details

Main
range of product	Altivar
product or component type	EMC input filter
range compatibility	Altivar 71 Altivar 212 Altivar 61
product compatibility	ATV212HU22N4 ATV212HU30N4 ATV212HD22M3X ATV61HD18M3X ATV61HD22M3X ATV61HD22N4 ATV71HD18M3X ATV71HD22M3X ATV71HD22N4 ATV71WD22N4
product specific application	Radio interference input filter
[In] rated current	90 A
thermal losses	13,5 W ATV21HD30N4 27,1 W ATV21HD22M3X 7,3 W ATV21HD22N4 34 W 200...240 V AC ATV61/ATV71 variable speed drives 11 W 380...480 V AC ATV61/ATV71 variable speed drives
network number of phases	Three phase

Complementary
electrical connection	Terminal 50 mm² AWG 0
tightening torque	6 N.m
maximum earth leakage current	60 mA 400 V 50 Hz 33 mA 400 V 50 Hz 40,6 mA 480 V 60 Hz 84,5 mA 480 V 60 Hz
power supply voltage	200…240 V 380…500 V
tolerance	10 %
net weight	15 kg

Environment
IP degree of protection	IP20 IP41 upper part)
relative humidity	0…93 % IEC 68-2-3
ambient air temperature for operation	-10…50 °C
ambient air temperature for storage	-40…65 °C
operating altitude	<= 1000 m without current derating 1000...3000 m with current derating 1 % per 100 m
vibration resistance	1 gn 13…150 Hz)IEC 60068-2-6 1.5 mm peak to peak 3…13 Hz)IEC 60068-2-6
shock resistance	15 gn 11 ms EN/IEC 60068-2-27
standards	EN 133200 EN/IEC 61800-3

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
