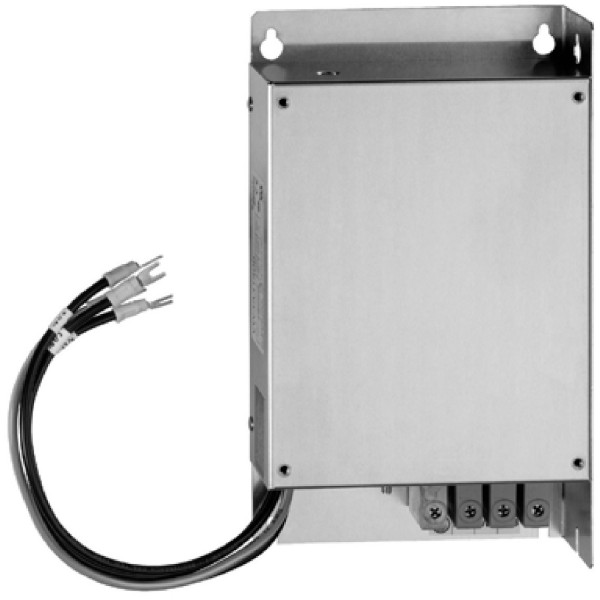

additionnal EMC input filter - 3-phase supply - 92 A

Ülevaaded: 0

Tootekood: VW3A4407

Quick Overview

Saadavus: Tellimisel

579,41 € (ilma KM-ta)

Details

Main
range of product
Altivar
product or component type
EMC input filter
range compatibility
Altivar 61
Altivar 71
Altivar 212
product compatibility
ATV212HD37N4
ATV212HD45N4
ATV21HD37N4
ATV21HD45N4
ATV61HD30N4
ATV61HD37N4
ATV71HD30N4
ATV71HD37N4
ATV71WD30N4
ATV71WD37N4
product specific application
Radio interference input filter
[In] rated current
92 A
thermal losses
16 W ATV21HD37N4
23 W ATV21HD45N4
30 W
network number of phases
Three phase
Complementary
electrical connection
Terminal 50 mm² AWG 0
tightening torque
6 N.m
maximum earth leakage current
60 mA 400 V 50 Hz
106 mA 480 V 60 Hz
power supply voltage
200…240 V
380…500 V
tolerance
10 %
net weight
17 kg
Environment
IP degree of protection
IP20
IP41 upper part)
relative humidity
0…93 % IEC 68-2-3
ambient air temperature for operation
-10…50 °C
ambient air temperature for storage
-40…65 °C
operating altitude
<= 1000 m without current derating
<= 1000 m without
1000...3000 m with current derating 1 % per 100 m
vibration resistance
1 gn 13…150 Hz)IEC 60068-2-6
1.5 mm peak to peak 3…13 Hz)IEC 60068-2-6
shock resistance
15 gn 11 ms EN/IEC 60068-2-27
standards
EN 133200
EN/IEC 61800-3
Offer Sustainability
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Contractual warranty
Garantii
18 months
