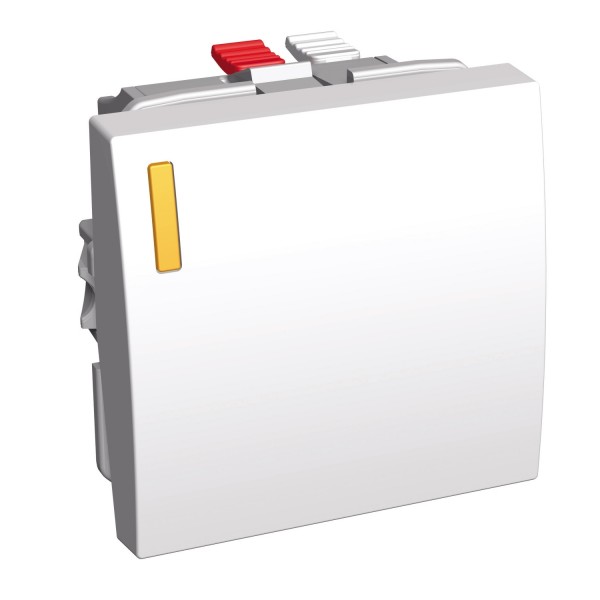

Altira - switch - 2-way switch - 16 A - white

Details

Main
range	Altira
range of product	Altira
product or component type	Switch
device presentation	Mechanism
switch additional information	Without lamp
cover plate colour tint	White RAL 9010)

Complementary
wiring device mounting	Surface Flush
device mounting	Flush Surface
product destination	Fixing frame OptiLine 45 installation system
switch function	2-way switch
rated current	16 A 250 V AC
actuator	Rocker
number of modules	2 modules
fixing mode	Clip-in
pilot light	Indicator
connections - terminals	3 screwless terminals
clamping connection capacity	2 x 1.5...2 x 2.5 mm² rigid 2 x 1.5...2 x 2.5 mm² solid stranded
material	PC mechanism cover
surface treatment	Untreated
surface finish	Satin
embedding depth	21 mm
height	45 mm
width	45 mm
depth	28 mm
net weight	0,027 kg
market segment	Residential Small commercial

Environment
standards	EN 62262 IEC EN 60669-1 EN 60529
ambient air temperature for operation	-5…50 °C
ambient air temperature for storage	-15…60 °C
IK degree of protection	IK04
IP degree of protection	IP21D
environmental characteristic	Hydrogen peroxide (H2O2) Window-cleaning fluid Alcohol Acetone Ammonia Petrol Bleach Oil UV resistant Liquid soap
environmental health and issues	Halogen free

Contractual warranty
Garantii	18 months
