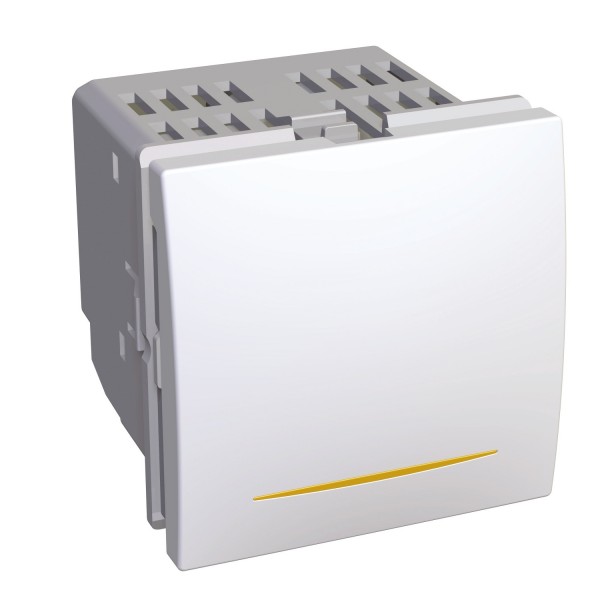

Altira - time delay switch - 2 seconds to 12 minutes - white

Product was successfully added to your shopping cart.

Altira - time delay switch - 2 seconds to 12 minutes - white

Tootekood: ALB45139

Quick Overview

Saadavus: Tellimisel

105,03 € (ilma KM-ta)

Qty:

Details

Main
range of product	Altira
product or component type	Time delay switch
device presentation	Mechanism
load type	1840 W 230 V AC halogen lamp 1840 W dimmable fluocompact lamp 1840 W fluorescent lamp with conventional ballast 1840 W heater 1840 W incandescent lamp 1840 W low voltage halogen lamp with electronic transformer 1840 W low voltage halogen lamp with ferromagnetic transformer 3 A ventilator
cover plate colour tint	White RAL 9010)

Complementary
wiring device mounting	Flush
product destination	OptiLine 45 installation system
contacts type and composition	1 C/O
[Ue] rated operational voltage	230 V AC 50 Hz
status LED	Switched on (ON) LED blue)
number of modules	2 modules
fixing mode	Clip-in
time delay	2 s...12 min
connections - terminals	4 screw terminals
clamping connection capacity	2 x 2.5 mm² flexible 2 x 2.5 mm² rigid 2 x 2.5 mm² solid stranded
connected auxiliaries	Maximum 5 auxiliary push-buttons with light indication Maximum 25 auxiliary push-buttons without light indication
material	PC mechanism cover
surface finish	Satin
height	45 mm
width	45 mm
depth	34 mm

Environment
standards	EN 60669-2-1
ambient air temperature for operation	0…35 °C
ambient air temperature for storage	-15…60 °C
IK degree of protection	IK20
IP degree of protection	IP04
environmental characteristic	Ammonia Window-cleaning fluid Hydrogen peroxide (H2O2) Oil UV resistant Bleach Liquid soap Petrol Alcohol Acetone
environmental health and issues	Halogen free

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
