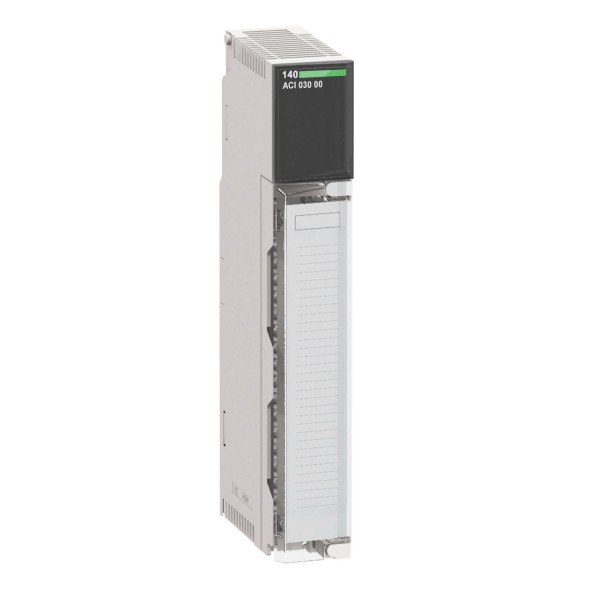

analog input module Modicon Quantum

Details

Main
range of product	Modicon Quantum automation platform
product or component type	Analogue input module
type of filter	Single pole low pass - 3 dB at 15 Hz +/- 20 %

Complementary
analogue input number	8
input type	Differential
addressing requirement	9 input words
analogue input resolution	12 bits
linear measuring range	1...5 V 4...20 mA
absolute maximum input	50 V DC 25 mA
input impedance	250 Ohm current +/- 0.01 % > 20 MOhm voltage
absolute accuracy error	+/- 0.05 % of full scale +/- 0.1 % of full scale maximum
linearity error	+/- 0.04 %
accuracy drift according to temperature	+/- 0.0025 % of full scale/°C <= 0.005 % of full scale/°C
common mode rejection	> - 72 dB 60 Hz
isolation between channels and bus	1000 V DC 3000 V DC for 60 s
isolation between channels	30 V DC
update time	5 ms
fault type	Broken wire 4...20 mA Undervoltage range 1...5 V
marking	CE
local signalling	1 LED (green)bus communication is present (Active): 1 LED (red)external fault: 8 LEDs (green)channel is turned on: 8 LEDs (red)channel fault:
bus current requirement	240 mA
power dissipation in W	2 W
module format	Standard
net weight	0.3 kg

Environment
standards	UL 508 CSA C22.2 No 142
product certifications	FM Class 1 Division 2 CUL
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…1000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
