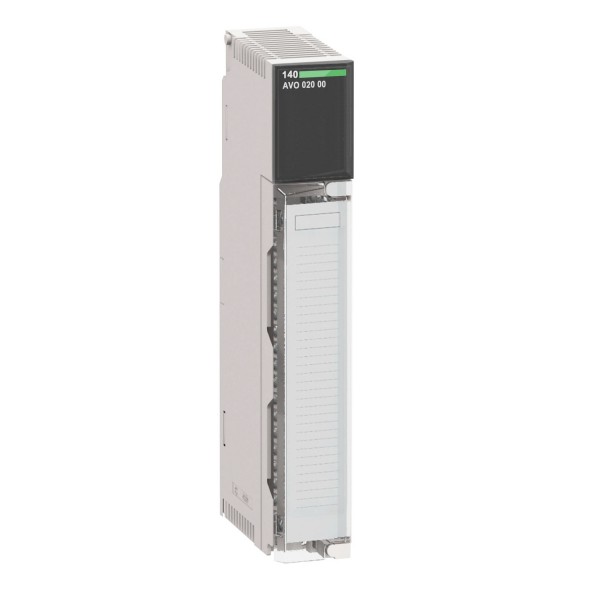

analog output module Modicon Quantum

Details

Main
range of product	Modicon Quantum automation platform
product or component type	Analogue output module

Complementary
analogue output number	4
addressing requirement	4 output words
analogue output range	+/- 10 V >= 1000 Ohm bipolar voltage +/- 5 V >= 500 Ohm bipolar voltage 0...10 V >= 1000 Ohm unipolar voltage 0...5 V >= 500 Ohm unipolar voltage
analogue output resolution	12 bits
analogue output current	-10…10 mA
source resistance	0.1 Ohm
maximum cable distance between devices	400 m
absolute accuracy error	+/- 0.15 % of full scale at 25 °C
linearity	+/- 1 LSB
accuracy drift according to temperature	0.003 % of full scale/°C unipolar 0.004 % of full scale/°C bipolar 0.005 % of full scale/°C maximum unipolar 0.007 % of full scale/°C maximum bipolar
isolation between channels	500 V for 1 minute 47...63 Hz AC
isolation between channels and bus	780 V for 1 minute AC
update time	3 ms
setting time	700 µs to +/- 0.1 % of the final value maximum
bus current requirement	700 mA
maximum power dissipation in W	4.5 W
associated fuse rating	0.063 mA 3 AG fast blow at 250 V
marking	CE
local signalling	1 LED (green)bus communication is present (Active): 1 LED (red)external fault: 4 LEDs (green)channel is turned on: 4 LEDs (red)channel fault:
module format	Standard
net weight	0.3 kg

Environment
product certifications	FM Class 1 Division 2 CUL
standards	UL 508 CSA C22.2 No 142
resistance to electromagnetic fields	10 V/m 80…2000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
