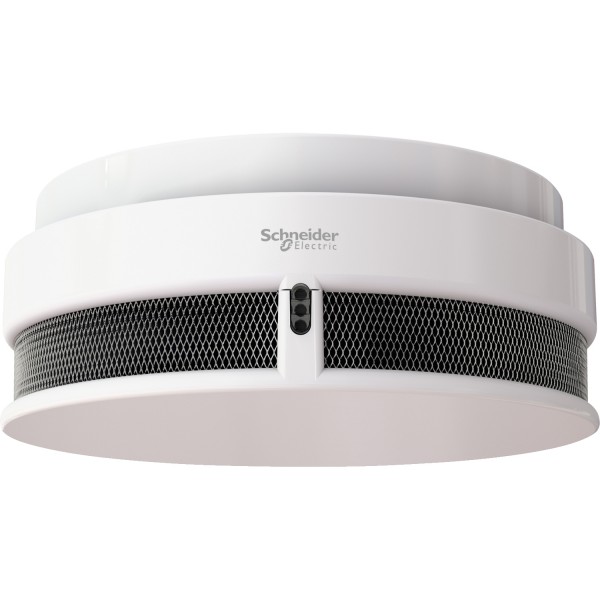

ARGUS Smoke Detector Basic

Details

Main
range	ARGUS
product or component type	Smoke detector
device application	Early detection of smouldering fires and open fires
colour tint	Polar white (RAL 9010)
quantity per set	Set of 1
type of packing	Carton
market segment	Residential

Complementary
power supply type	Battery
battery type	Lithium 3.6 V
battery life	10 year(s)
detection type	Smoke
device composition	2 screws 2 wall plugs
number of devices	40
function available	function button remote alarm wired network alarm memory
number of device interconnected	40
technology type	Scattered light (Tyndall effect)
type of measurement	Optic
horn level	85 dB at 3 m
local signalling	Visual: LED (red) Visual: LED (yellow) Sound: alarm
type of cable	Separate twin core line
maximum cable distance between devices	500 m total 25 m between two devices
cable cross section	0.5…1.5 mm², 2 wires solid
wire stripping length	9 mm
type of installation	Indoor
device mounting	Wall Ceiling
fixing mode	By screws
diameter	112 mm
height	49 mm
net weight	0.149 kg

Environment
ambient air temperature for operation	0…60 °C
standards	EN 14604
directives	14/01 - vfdb directive
quality labels	Q

Offer Sustainability
Sustainable offer status	Green Premium product
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
