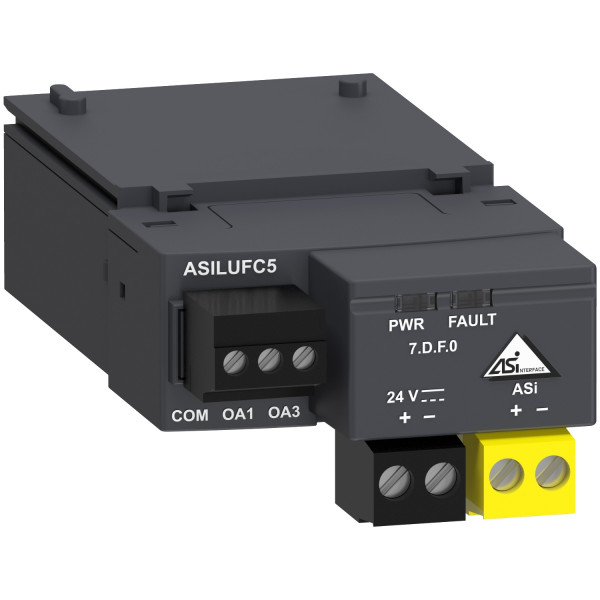

AS-Interface communication module - for TeSys U - 24 V DC

Ülevaaded: 0

Tootekood: ASILUFC5

Quick Overview

Saadavus: Tellimisel

107,53 € (ilma KM-ta)

Details

Main
range
TeSys
device short name
ASILUF
product or component type
Communication module
product compatibility
LUCA
LUCL
LUCD
LUCM
LUCC
LUCB
device application
Communication
range compatibility
TeSys U LUB non reversing power base
TeSys U LU2B reversing power base
Complementary
main function available
AS-Interface communication module
mounting mode
Plug-in
mounting location
Front side
bus type
AS-Interface
communication port protocol
Profibus DP
addressing
31 slaves
current consumption
200 mA 24 V output
25 mA normal operation
30 mA fault operation
switching current capacity
500 mA 24 V against short-circuits solid state
local signalling
2 LEDs front panel
connection pitch
3,81 mm output
5,08 mm input
connections - terminals
Input screw clamp terminals 1 0,2…1,5 mm²flexible without cable end
Input screw clamp terminals 1 0,2…1,5 mm²rigid without cable end
Input screw clamp terminals 1 0,25…1,5 mm²flexible with cable end
Input screw clamp terminals 2 0,2…1 mm²flexible without cable end
Input screw clamp terminals 2 0,2…1 mm²rigid without cable end
Input screw clamp terminals 2 0,25…1 mm²flexible with cable end
Input screw clamp terminals 2 0,5…1 mm²flexible with cable end
Output screw clamp terminals 1 0,14…1 mm²flexible without cable end
Output screw clamp terminals 1 0,14…1 mm²rigid without cable end
Output screw clamp terminals 1 0,25…0,5 mm²flexible with cable end
Output screw clamp terminals 1 0,25…1 mm²flexible with cable end
Output screw clamp terminals 2 0,14…0,5 mm²rigid without cable end
Output screw clamp terminals 2 0,14…0,75 mm²flexible without cable end
Output screw clamp terminals 2 0,25…0,34 mm²flexible with cable end
Output screw clamp terminals 2 0,5 mm²flexible with cable end
tightening torque
Input 0,5…0,6 N.m 3,5 mm
Output 0,2…0,25 N.m 2,5 mm
Environment
IP degree of protection
IP20 IEC 60529
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
