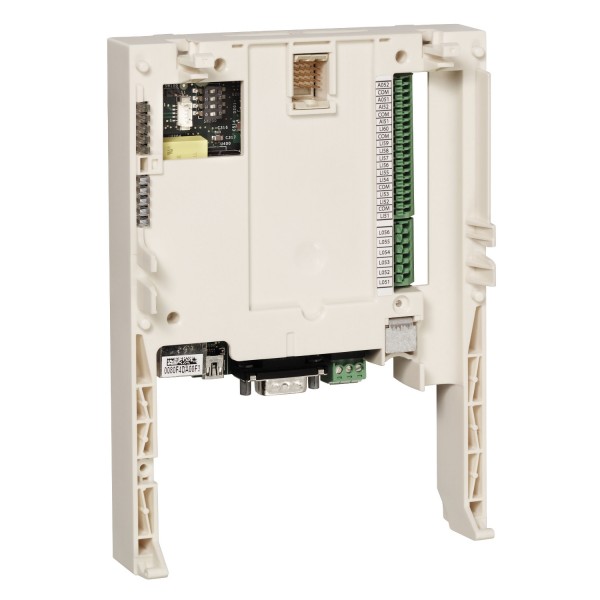

ATV IMC drive controller card type G generic

Ülevaaded: 0

Tootekood: VW3A3521

Quick Overview

Saadavus: Ei saa enam tellida

392,58 € (ilma KM-ta)

Details

Main
range of product
Altivar IMC
product or component type
Drive controller card
module configuration
Configured and programmed with SoMachine software
product specific application
-
discrete I/O number
16
analogue I/O number
4
Complementary
discrete input number
6 for input
4 for fast input
discrete input type
Configurable as single phase counter (LI51, LI59 terminals)
Configurable for incremental encoder (LI51, LI52 terminals)
Configurable for incremental encoder (LI59, LI60 terminals)
discrete input logic
Sink or source (positive/negative) for input
Positive logic (sink) for fast input
discrete input voltage
24...30 V
discrete input voltage type
DC
number of common point
1 for analogue output
1 for analogue input
3 for logic input
voltage state 1 guaranteed
>= 11 V for logic input
voltage state 0 guaranteed
<= 5 V for logic input
input impedance
500 Ohm for analogue output
4.4 kOhm for logic input
network frequency
<= 100 kHz fast input (counter mode)
<= 100 kHz fast input (encoder mode)
discrete output number
6 transistor output
discrete output logic
Positive logic (source)
discrete output voltage
24...30 V DC for transistor output
discrete output current
2 A for transistor output (LO51...LO56)
output compatibility
Level 1 PLC for transistor output
absolute accuracy error
+/- 1 % for a temperature variation 60 °C for analogue input
+/- 1 % for a temperature variation 60 °C for analogue output
short-circuit protection
With output and fast output
overvoltage protection
With overvoltage protection for output and fast output
overload protection
With overload protection for output and fast output
analogue input number
2
analogue input type
Configurable voltage or current
analogue input range
0...5 V
0...20 mA
analogue input resolution
10 bits
analogue output number
2
analogue output range
0...20 mA
analogue output resolution
12 bits
linearity error
+/- 0.4 % of maximum value for analogue input
+/- 0.2 % of maximum value for analogue output
[Us] rated supply voltage
24 V DC
supply voltage limits
19…30 V
memory description
Internal RAM 2000 kB
Flash 2000 kB
Internal data storage (FRAM) 64 ko
Program memory 1 Mo
integrated connection type
MDI/MDX port with RJ45 connectorEthernet, physical interface: 10BASE-T/100BASE-TX
Programmation port with mini B USB connector, transmission rate: 480 Mbit/s
CANopen with male SUB-D 9 connectorCANopen with master
CANopen feature profile
DS 301 V4.02
DR 303-1
level or class
Class M20 - 32 slave(s) for CANopen
communication service
320 TPDOs and RPDOs maxi
10 PDOs per slave (transmission/emission)
transmission rate
1000 kbit/s for bus length of 20 m for CANopen
500 kbit/s for bus length of 100 m for CANopen
250 kbit/s for bus length of 250 m for CANopen
125 kbit/s for bus length of 500 m for CANopen
50 kbit/s for bus length of 1000 m for CANopen
20 kbit/s for bus length of 2500 m for CANopen
local signalling
1 LED (green/yellow)ETH (Ethernet activity):
1 LED (green/red)NS (Network Status):
1 LED (green/red)MS (Module Status):
1 LED (green/red)CAN (CANopen activity):
1 LED (green/red)USER (programmable):
electrical connection
1 connector with removable screw terminal block - 3 contacts - <= 1 x 1.5 mm² - AWG 16 for connecting the 24 V DC power supply
3 connectors with screw terminal block - <= 1 x 1.5 mm² - AWG 16 for inputs/outputs
1 connector - mini B USB for programming with SoMachine software
1 male connector - SUB-D 9 for connection to the CANopen bus
1 connector - RJ45 for programming with SoMachine software/Ethernet Modbus TCP network
tightening torque
0.25 N.m
associated complete product
ATV71
ATV61
TCSXCNAMUM3P
net weight
0.185 kg
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Contractual warranty
Warranty
18 months
