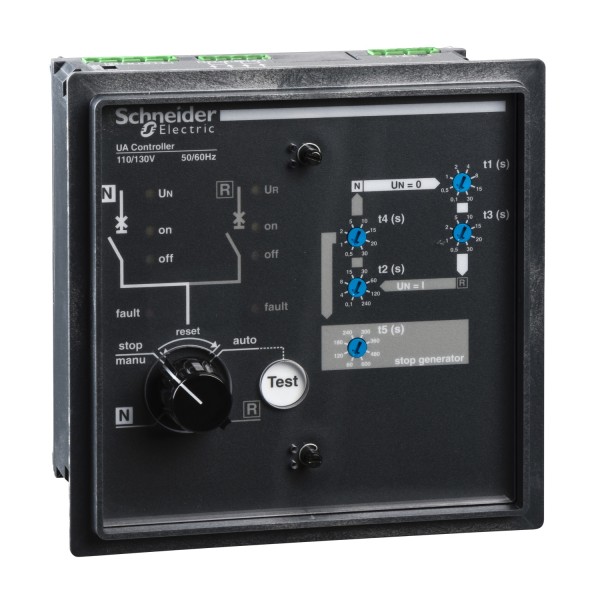

automatic controller - UA - 110..127 V

Ülevaaded: 0

Tootekood: 29446

Quick Overview

Saadavus: Tellimisel

374,30 € (ilma KM-ta)

Details

Main
product name
UA
product or component type
Control unit
Complementary
[Us] rated supply voltage
110 V AC 50/60 Hz
operating mode
Stop (both normal and replacement source off)
Automatic operation
Forced operation on replacement source
Forced operation on normal source
interlocked device
Masterpact NT
Compact NS100...630
Compact NS630b...1600
Masterpact NW
selection modes
Circuit breaker on N
Circuit breaker on R
genset exerciser
Startup control
Adjustable delayed shutdown
test function
By pressing the test button on the front of the controller
complementary function
Voluntary transfer to replacement source (e.g. energy management commands)
Setting of maximum startup time for the replacement source
Additional contact: transfer to replacement source only if contact is closed
Forced normal source if replacement source not operational during peak-tariff
Selection of type of normal source (single-phase or three-phase)
local signalling
On
Fault trip
Off
input type
Contacts customer voluntary order to transfer to source R
output type
Contacts customer indication of operation in automatic or stop mode
[Ith] conventional free air thermal current
8 A
[Ie] rated operational current
AC-12 4 A AC 440 V
AC-12 5 A AC 380/415 V
DC-13 2 A 24 V
Environment
standards
IEC 947-5-1
IP degree of protection
Connectors IP20 EN 60529
Front IP40 EN 60529
Side IP30 EN 60529
IK degree of protection
Front IK07 EN 50102
Offer Sustainability
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Contractual warranty
Garantii
18 months
