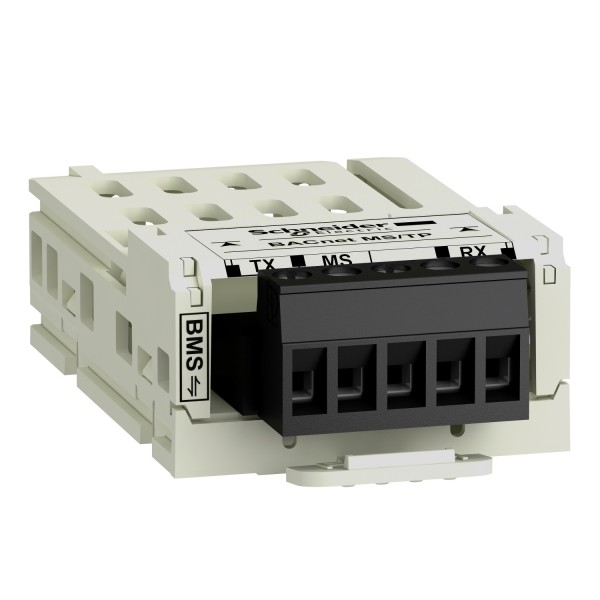

BACnet MS/TP communication module - Altivar Process ATV600

Product was successfully added to your shopping cart.

BACnet MS/TP communication module - Altivar Process ATV600

Tootekood: VW3A3725

Quick Overview

Saadavus: Tellimisel

236,48 € (ilma KM-ta)

Qty:

Details

Main
range of product	Altivar
product or component type	Communication module

Complementary
product compatibility	ATV600 (>= V1.7)
communication port protocol	BACnet MS/TP
electrical connection	Screw terminal block 5-pin removable terminal block, BACnet MS/TP
transmission rate	9.6, 19.2, 38.4, 76.8 kbit/s
transmission support medium	2 twisted pairs
communication service	AV, BV, MSV for BACnet MS/TP COV notification
communication network type	RS485
display type	1 LED for error 1 LED for transmission activity 1 LED for reception activity (RX) 1 LED for module status
net weight	0.035 kg

Environment
IP degree of protection	IP20
ambient air temperature for operation	-20…65 °C
ambient air temperature for storage	-25…70 °C
relative humidity	5…95 % without condensation
operating altitude	0...2000 m
storage altitude	0…3048 m
vibration resistance	1.5 mm (f = 3…13 Hz) 1 mm (f = 13…23 Hz) 2 gn (f = 13…150 Hz)
shock resistance	15 gn for 11 ms
electromagnetic compatibility	EMC immunity conforming to EN/IEC 61000-6-1 EMC immunity level 2 conforming to EN/IEC 60730-1 Electrostatic discharge level 3B conforming to IEC 61000-4-2 Radiated RF fields level 3A conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4B conforming to IEC 61000-4-4 Surge immunity test level 3 conforming to IEC 61000-4-5 Conducted RF disturbances level 3A conforming to IEC 61000-4-6 Conducted EMC level 2 conforming to EN/IEC 60730-1 Conducted EMC conforming to EN/IEC 61000-6-3
product certifications	BTL CSA UL 508 UL 873

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
