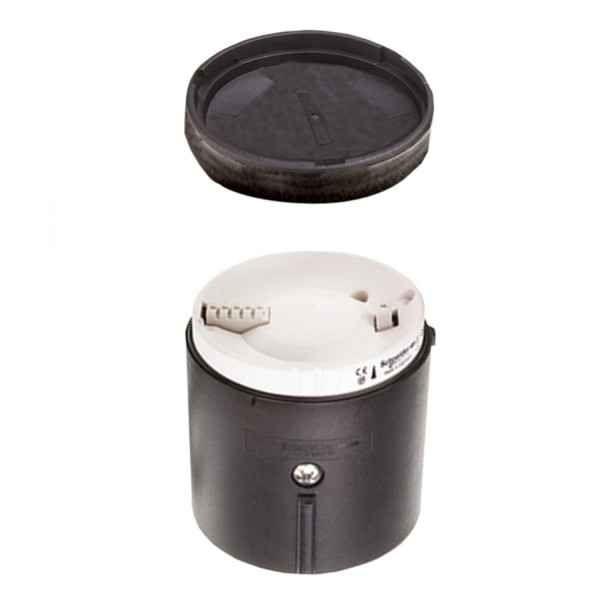

Base unit + cover for modular tower lights, plastic, black, Ø70, AS-i connection, bottom entry, pre-cabled, M12 connector

Ülevaaded: 0

Tootekood: XVBC21B

Quick Overview

Saadavus: Tellimisel

372,19 € (ilma KM-ta)

Details

Main
range of product
Harmony XVB Universal
product or component type
Base unit with cover
component name
XVBC
Complementary
range compatibility
AS-Interface cabling system
material
Glass reinforced polyamide base unit
Polycarbonate cover unit
mounting diameter
70 mm
[Us] rated supply voltage
External 19.2...30 V
AS-Interface line 24...31.6 V
current consumption
250 mA under load via AS-Interface line
30 mA under load external
30 mA no load
actuator sensor interface profile [AS-i]
S.7.F
electrical connection
1 remote connector M12 1 m AS-Interface line
cable entry
Side entry
assembly style
Customer assembly, up to 5 units
[Ui] rated insulation voltage
250 V IEC 60947-1
[Uimp] rated impulse withstand voltage
4 kV IEC 60947-1
terminals description ISO n°1
(COM-4)PW
(COM-2)PW
(COM-3)PW
(COM-1)PW
(GND)GROUND
(COM-5)PW
net weight
0,3 kg
Environment
product certifications
CSA
AS-Interface No 25701
standards
EN/IEC 60947-5-1
protective treatment
TC
ambient air temperature for storage
-20…70 °C
ambient air temperature for operation
-10…50 °C
shock resistance
25 gn IEC 60068-2-27
vibration resistance
5 gn IEC 60068-2-6
overvoltage category
Class I IEC 60536
IP degree of protection
IP65 IEC 60529
IP65 NF C 20-010
NEMA degree of protection
NEMA 4X UL 508 indoor)
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
