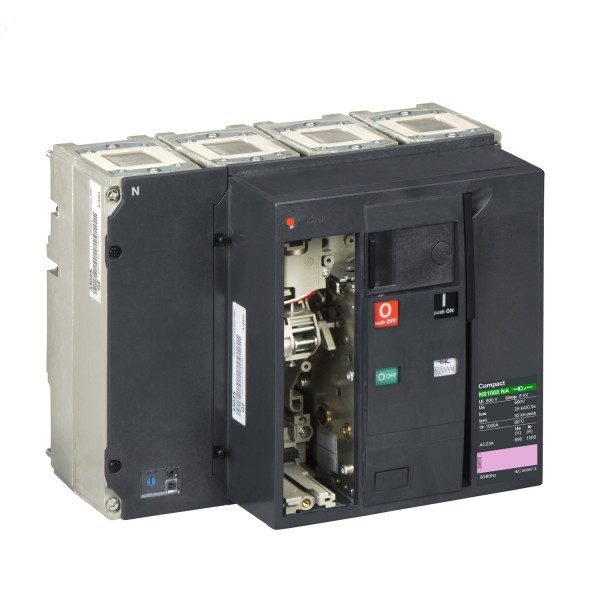

basic switch disconnector, Compact NS1000 NA, fixed, electrically operated, 1000 A, 690 VAC 50/60 Hz, 4 poles

Details

Complementary
network frequency	50/60 Hz
control type	Motor mechanism
mounting mode	Fixed
mounting support	Chassis
[Ie] rated operational current	AC-23A 1000 A AC 50/60 Hz 220/240 V AC-23A 1000 A AC 50/60 Hz 380/415 V AC-23A 1000 A AC 50/60 Hz 440/480 V AC-23A 1000 A AC 50/60 Hz 500/525 V AC-23A 1000 A AC 50/60 Hz 660/690 V
[Ui] rated insulation voltage	800 V AC 50/60 Hz IEC 60947-3
[Uimp] rated impulse withstand voltage	8 kVIEC 60947-3
[Ith] conventional free air thermal current	1000 A 60 °C
[Icw] rated short-time withstand current	25 kA 0.5 s IEC 60947-3 4 kA 20 s IEC 60947-3
[Icm] rated short-circuit making capacity	52 kA 690 V AC 50/60 Hz
[Ue] rated operational voltage	690 V AC 50/60 Hz IEC 60947-3
contact position indicator	Yes
visible break	No
mechanical durability	6000 cycles IEC 60947-3
electrical durability	1000 cycles 440 V AC 50/60 Hz IEC 60947-3
connection pitch	70 mm
height	327 mm
width	280 mm
depth	147 mm
net weight	18 kg

Environment
standards	IEC 60947-3
product certifications	ASEFA ASTA
pollution degree	3 IEC 60947-3
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
