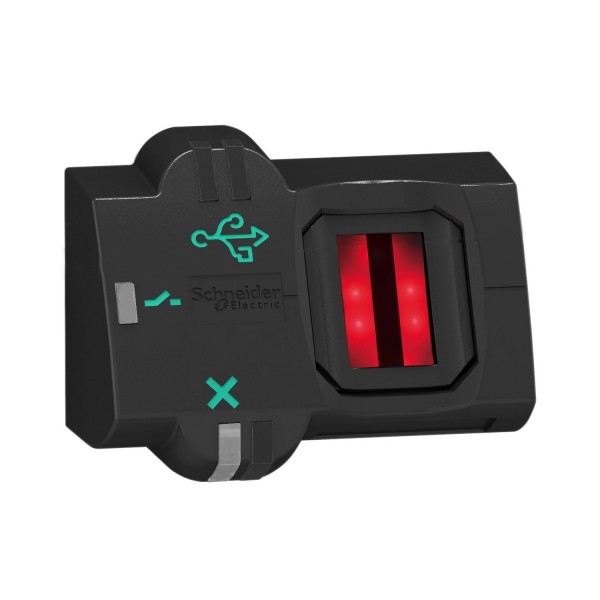

Bistable USB Biometric switch - connection by M12 connector

Details

Main
product or component type	Biometric switch
product specific application	Industrial machines Materials handling
device short name	XB5S
bezel material	Dark grey plastic
mounting diameter	22 mm
output type	PNP
sale per indivisible quantity	1
IP degree of protection	IP20 (rear face) conforming to EN/IEC 60529 IP65 (front face) conforming to EN/IEC 60529
type of operator	Stay put
operator position information	2 positions
operator profile	fingerprint reader
memory usage	200 users with up to 2 fingerprints per user

Complementary
software designation	XB5SSoft
enclosure material	Polyamide PA66
cable insulation material	PvR
operating position	Flat surface installation Horizontal position Vertical surface installation
function of module	Bi-stable
net weight	0.215 kg
marking	CE
port protocol	USB
connector type	USB type A male with 1 m cable
local signalling	1 LED (green)output state indicator: 1 LED (red)error:
short-circuit protection	250 mA external fuse type gG
[Us] rated supply voltage	24 V DC
electrical connection	M12 connector of 0.2 m
supply voltage limits	20…30 V DC
protection type	Short-circuit Overload protection Reverse polarity
maximum switching current	200 mA
[Ures] residual voltage	1 V closed state
current consumption	<= 70 mA no-load
maximum delay first up	3 s + 0.5 ms per user registered
maximum delay recovery	1.5 s
maximum delay response	1.5 s

Environment
range of product	Harmony XB5S
ambient air temperature for storage	-25…70 °C
ambient air temperature for operation	-5…50 °C
NEMA degree of protection	NEMA 12
standards	IEC 61000-6-2 IEC 61000-6-4
product certifications	CSA UL
vibration resistance	+/- 3 mm (f= 5…9 Hz) conforming to IEC 60068-2-6 1 gn (f= 9…500 Hz) conforming to IEC 60068-2-6
shock resistance	50 gn 11 ms conforming to IEC 60068-2-27

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
