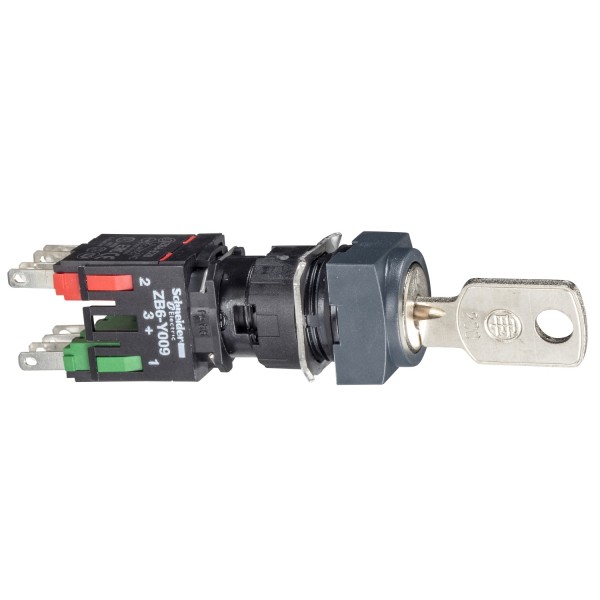

black complete square selector switch Ø16 3-position stay put 1NO+1NC Ronis 200

Ülevaaded: 0

Tootekood: XB6CGH5B

Quick Overview

Saadavus: Tellimisel

29,83 € (ilma KM-ta)

Details

Main
range of product
Harmony XB6
product or component type
Complete selector switch
device short name
XB6
bezel material
Plastic
mounting diameter
16 mm
sale per indivisible quantity
1
operating position
Any position
shape of signaling unit head
Square
type of operator
stay put
operator profile
key switch
operator position information
3 positions 70°
type of keylock
Ronis 200
key withdrawal position
In any position
contacts type and composition
1 NO + 1 NC
contact operation
Slow-break
Complementary
CAD overall width
18 mm
CAD overall height
18 mm
CAD overall depth
80 mm
terminals description ISO n°1
(21-22)NC
(13-14)NO
net weight
0.036 kg
positive opening
With conforming to EN/IEC 60947-5-1 appendix K
mechanical durability
200000 cycles
connections - terminals
Faston connectors, connection size: 2.8 x 0.5 mm
contacts material
Silver alloy (Ag/Ni)
short-circuit protection
6 A cartridge fuse type gG
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
EN/IEC 60947-1 4 kV
[Ie] rated operational current
3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1
1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1
0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1
electrical durability
1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
electrical reliability
Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to EN 60947-5-4
Environment
protective treatment
TC
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-25…70 °C
electrical shock protection class
Class II conforming to IEC 61140
IP degree of protection
IP65 conforming to IEC 60529
standards
JIS C8201-5-1
EN/IEC 60947-1
UL 508
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-5-5
JIS C 852
JIS C8201-1
product certifications
CCC
CSA
UL
GOST
vibration resistance
+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
