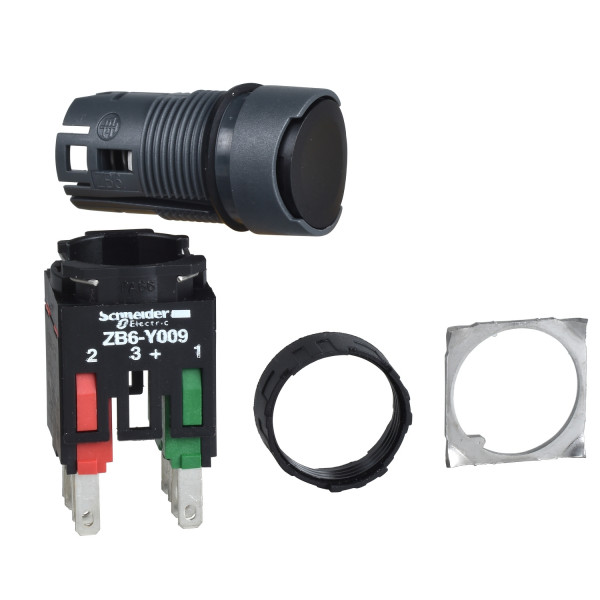

black flush complete pushbutton Ø16 spring return 1NC unmarked

Ülevaaded: 0

Tootekood: XB6AA22B

Quick Overview

Saadavus: Tellimisel

9,69 € (ilma KM-ta)

Details

Main
range of product
Harmony XB6
product or component type
Complete push-button
device short name
XB6
bezel material
Plastic
mounting diameter
16 mm
sale per indivisible quantity
1
shape of signaling unit head
Round
type of operator
spring return
operator profile
Black flush, unmarked
contacts type and composition
1 NC
contact operation
Slow-break
connections - terminals
Faston connectors, connection size: 2.8 x 0.5 mm
Complementary
CAD overall width
18 mm
CAD overall height
18 mm
CAD overall depth
57 mm
terminals description ISO n°1
(21-22)NC
net weight
0.019 kg
operating position
Any position
positive opening
With conforming to EN/IEC 60947-5-1 appendix K
operating travel
2 mm (NC changing electrical state)
3.5 mm (total travel)
operating force
4.5 N NC changing electrical state
mechanical durability
2000000 cycles
contacts material
Silver alloy (Ag/Ni)
short-circuit protection
6 A cartridge fuse type gG
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
EN/IEC 60947-1 4 kV
[Ie] rated operational current
3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1
1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1
0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1
electrical durability
1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
electrical reliability
Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4
Environment
protective treatment
TC
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-25…70 °C
electrical shock protection class
Class II conforming to IEC 61140
IP degree of protection
IP65 conforming to IEC 60529
NEMA degree of protection
NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94
standards
UL 508
JIS C 4520
EN/IEC 60947-1
CSA C22.2 No 14
EN/IEC 60947-5-1
EN/IEC 60947-5-5
JIS C 852
product certifications
GOST
UL
CSA
CCC
vibration resistance
+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
