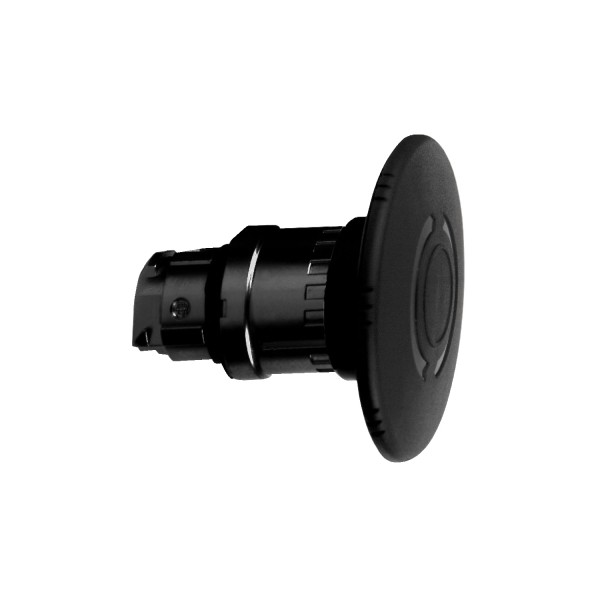

black Ø60 mushroom pushbutton head Ø22 latching turn release

Ülevaaded: 0

Tootekood: ZB4BS627

Quick Overview

Saadavus: Ei saa enam tellida

26,23 € (ilma KM-ta)

Details

Main
range of product
Harmony XB4
product or component type
Head for non-illuminated push-button
device short name
ZB4
bezel material
Black metal
mounting diameter
22 mm
sale per indivisible quantity
1
shape of signaling unit head
Round
type of operator
latching
reset
Turn to release
operator profile
Black mushroom Ø 60 mm, unmarked
Complementary
CAD overall width
60 mm
CAD overall height
60 mm
CAD overall depth
57 mm
net weight
0.09 kg
mechanical durability
300000 cycles
electrical composition code
C11 for <3 contacts using single blocks in front mounting
device presentation
Basic element
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
overvoltage category
Class I conforming to IEC 60536
IP degree of protection
IP66 conforming to IEC 60529
IP67
IP69
IP69K
NEMA degree of protection
NEMA 13
IK degree of protection
IK03 conforming to IEC 50102
standards
EN/IEC 60947-1
JIS C8201-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-1
CSA C22.2 No 14
UL 508
EN/IEC 60947-5-5
JIS C8201-1
product certifications
BV
LROS (Lloyds register of shipping)
GL
CSA
RINA
UL listed
DNV
vibration resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Contractual warranty
Warranty
18 months
