Details
Characteristics
| range of product | Harmony XB5 | |
|---|---|---|

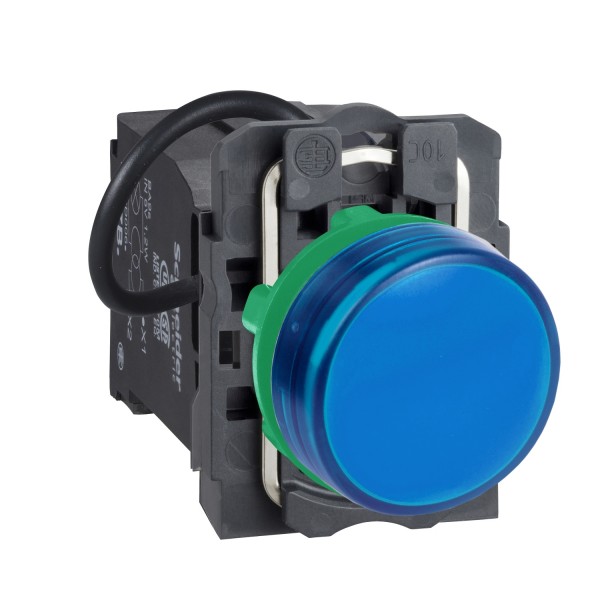

| product or component type | Pilot light | |
| device short name | XB5 | |
| bezel material | Dark grey plastic | |
| fixing collar material | Plastic | |
| head type | Standard | |
| mounting diameter | 22 mm | |
| sale per indivisible quantity | 1 | |
| shape of signaling unit head | Round | |
| cap/operator or lens colour | Blue | |
| operator additional information | With plain lens | |
| light source | Protected LED | |
| bulb base | Integral LED | |
| light source colour | Blue | |
| [Us] rated supply voltage | 550...600 V AC at 60 Hz | |
| device presentation | Complete product |
| CAD overall width | 40 mm | |
|---|---|---|
| CAD overall height | 45 mm | |
| CAD overall depth | 101 mm | |
| net weight | 0.133 kg | |
| resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m | |
| connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 | |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 | |
| signalling type | Steady | |
| supply voltage limits | 564…586 V AC | |
| service life | 100000 h at rated voltage and 25 °C | |
| surge withstand | 1 kV conforming to IEC 61000-4-5 |
| protective treatment | TH | |
|---|---|---|
| ambient air temperature for storage | -40…70 °C | |
| ambient air temperature for operation | -40…55 °C | |
| electrical shock protection class | Class II conforming to IEC 60536 | |
| IP degree of protection | IP66 conforming to IEC 60529IP67 conforming to IEC 60529IP69 conforming to IEC 60529IP69K conforming to ISO 20653 | |
| NEMA degree of protection | NEMA 13NEMA 4X | |
| IK degree of protection | IK05 conforming to IEC 50102 | |
| standards | EN/IEC 60947-5-1EN/IEC 60947-1CSA C22.2 No 14JIS C8201-5-1UL 508EN/IEC 60947-5-4JIS C8201-1 | |
| product certifications | UL listedCSA | |
| vibration resistance | 2 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | |
| resistance to fast transients | 2 kV conforming to IEC 61000-4-4 | |
| resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 | |
| resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-28 kV in free air (in insulating parts) conforming to IEC 61000-4-2 | |
| electromagnetic emission | Class B conforming to IEC 55011 |
| Warranty | 18 months |
|---|
